Wire Single End Housing Inserting and Tinning Machine

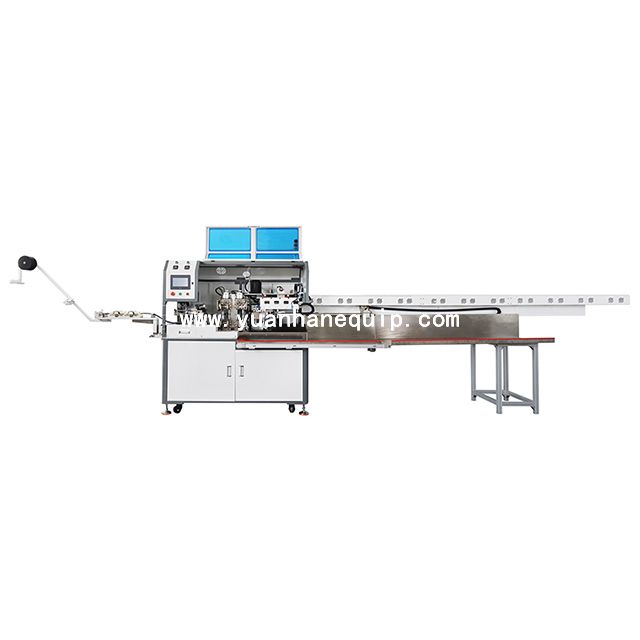

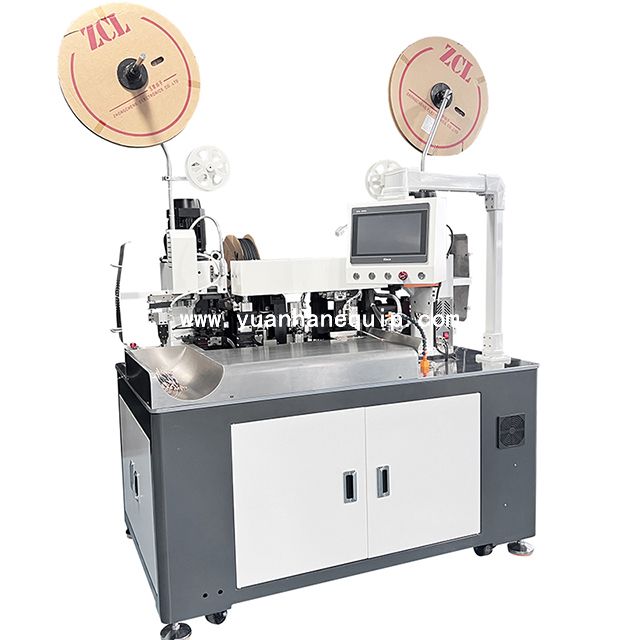

This fully automatic wire harness machine is able to process wire cutting, two-ends stripping, one end tinning, and one end housing inserting.

Model:	YH-800B
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Wire cutting, two-ends stripping, one end tinning, one end housing inserting and wire reverse processing

○ Automatic tin feeding, automatic fluxing

Model	YH-800B
Wire size	AWG#20 - #30（Wire diameter below 2.5mm）
Wire color	10 colors（Optional 2～10）
Cutting length	50 mm - 1000 mm (set unit as 0.1mm）
Cutting tolerance	Tolerance 0.1 mm +
Stripping length	1.0mm-8.0mm
Tinning length	1.0mm-8.0mm
Stripping tolerance	Tolerance +/-0.1mm
Crimping force	19600N（equivalent 2 ton）
Crimping stroke	30mm
Universal crimping tool	Universal OTP crimp tool
Detection function	Low pressure, whether lack of wire, whether wire overload, clamping error, whether lack of terminal, terminal overload, terminal insert detect, pressure sensing device (optional), CCD visual inspection (optional)
Control mode	PLC control
Internal control voltage	DC24V
Power supply	Single phase ~AC200V/220V 50HZ 10A (110V/60Hz optional)
Compressed air	0.5MPa、about 170N/min
Temperature range	15°C - 30°C
Humidity range	30% - 80%RH No dew
Warranty	1 year （Except for consumables）
Dimension	1560Wx1100Dx1600H
Net weight	About 800kg
