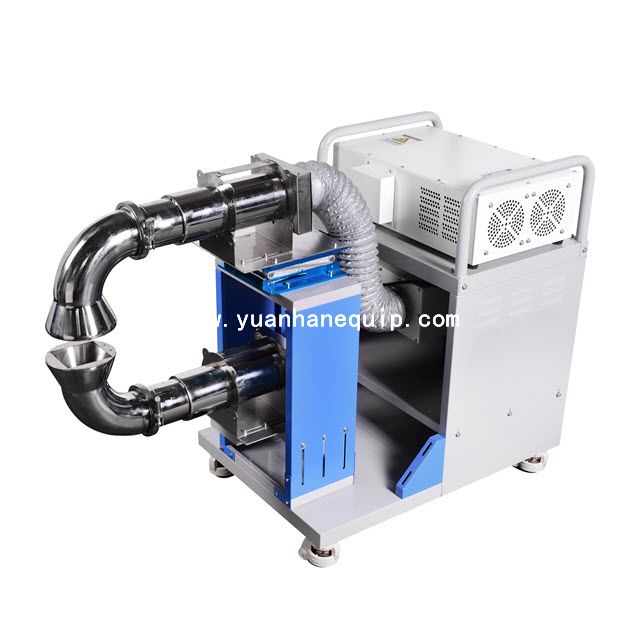

This machine is suitable for wearing heat shrinlable sleeves onto AC, DC cables and other electronic wire ends, as well as cable terminals.
|
Model:
|
|
|
Brand:
|
|
○ This machine can automatically cut heat shrinkable tubing into required length.
○ The operator inserts the wire end into the guide hole, stepping on the foot switch, and the device will heat shrink the tubing automatically.
○ The shrinkable tubing length, specifications, and heat shrink temperature can be adjusted by changing settings and replacing corresponding accessories.
| Model | YH-TG210 |
| System control mode | PLC/touch screen |
| Display | 4.3 inch colorful TFT |
| Applicable sleeves OD | 2.0φ/8.0φ (optional fixture) |
| Operating temperature | 0°C-50°C |
| Storage temperature | -20℃-60℃ |
| Operating humidity | 10%RH-90%RH (no condensation) |
| Power | 850W |
| Production efficiency | 800~2,500 PCS/H |
| Operation cycle | 2.5 seconds |
| Melting temperature | 200℃-380℃ |
| Cooling method | forced air cooling |
| Weight | 75kg |
| Dimensions | 500mm*640mm*1,300mm (L*W*H) |
| Power supply | AC220V 50/60HZ |
| Air pressure | 6.5/7.0KPa(compressed air must be dry, sufficient and oil-free. Otherwise it will affect the performance of the equipment). |
