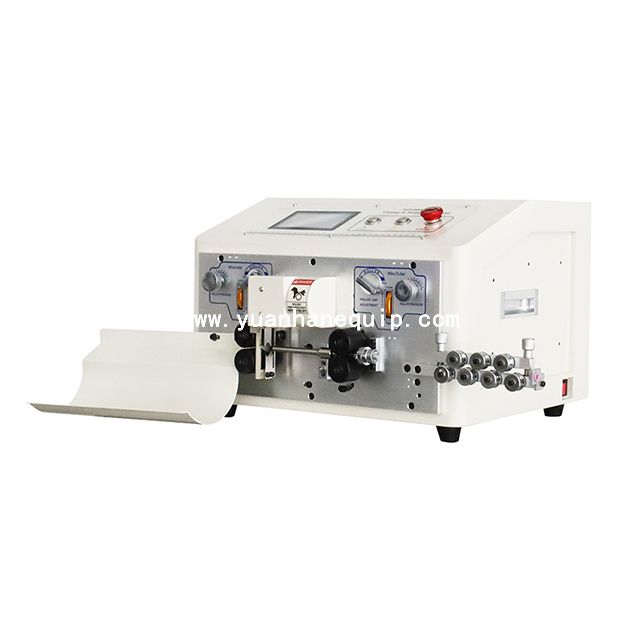

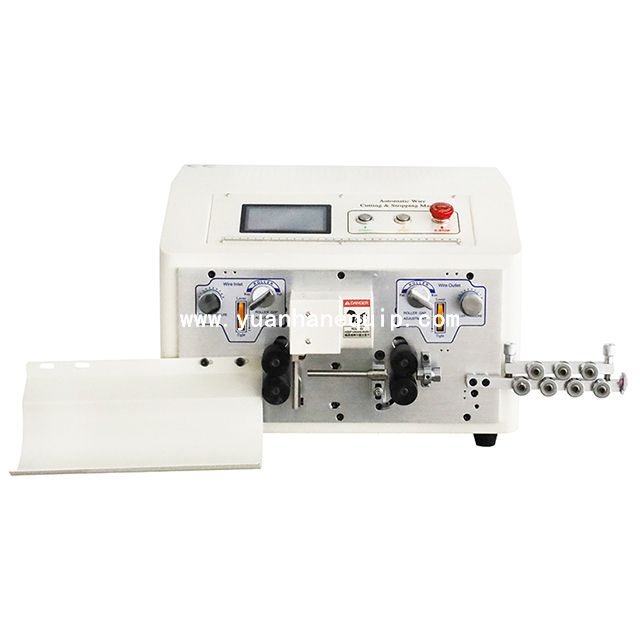

This fully automatic wire cutting and stripping machine is mainly used to cut and strip sheathed cables, including single conductor round cables and multi-core round cables.
|
Model:
|
|
|
Brand:
|
|
○ This machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan and Taiwan;
○ Suitable for processing single core wires and multi-core round sheathed cables;
○ LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;
○ Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;
○ One-time cutting and stripping, and splitting at the same time;
○ Saving labor and time and increasing productivity.
| Model | YH-HT2 |
| Conductor Cross-Section | 0.1-10 sqmm |
| Cutting Length | 1-100,000mm |
| Cutting Tolerance | (±0.0001×L)mm |
| Stripping Features | stripping outer jacket |
| Stripping length | Head: 0-150mm; Tail: 0-150 mm |
| Middle strip | Max 3 Sections |
| Conduit Diameter | φ13mm |
| Speed(pcs/h) | L=100mm, 3,000–6,000pcs/h |
| Drive Method | 4 wheels drive |
| Display Screen | English/Chinese LCD Screen |
| Power | 450W |
| Power Supply | 110/220V 50/60Hz |
| Weight | 47KG |
| Machine size | 53*53*40CM |
| Optional accessories | wire tray, rubber roller, wire straighter |
