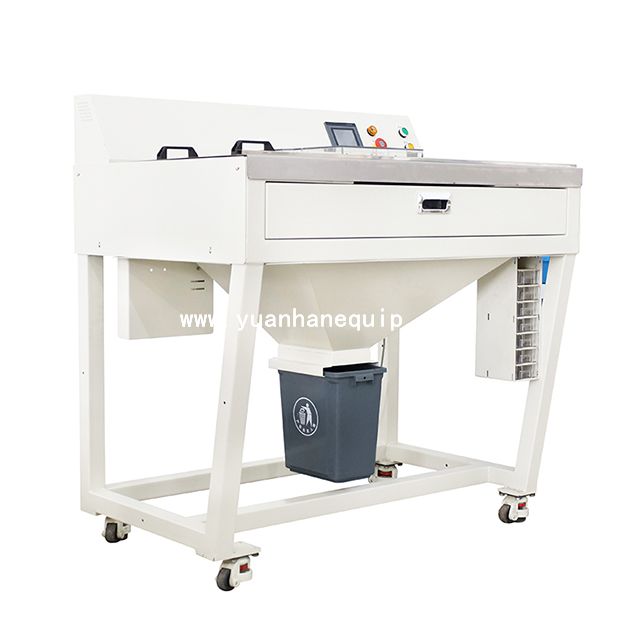

YH-P15 wire intermediate stripping machine is a professional equipment in the process of wire harness crimping. It can realize the middle stripping function of various cables.
|
Model:
|
|
|
Brand:
|
|

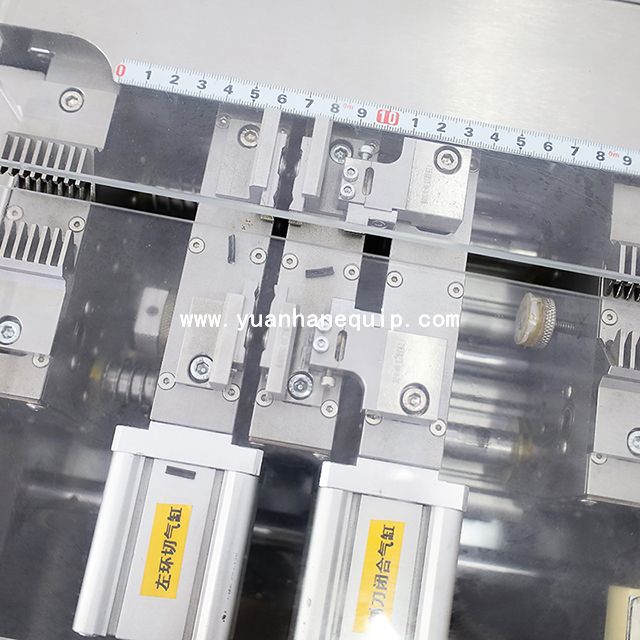

○ The wire middle peeling machine adopts a fully pneumatic mechanism to achieve efficient partial stripping, and uses an imported PLC to achieve precise control.
○ Wire range: 0.5-4.0 mm2 (can be customized)
○ Partial Stripping Length: 20mm (can be customized)
| Model | YH-P15 |
| Wire range |
0.5-4.0mm² (can be customized) |
| Partial stripping length | 20mm (can be customized) |
| Distance between stripping to wire end | more than 100mm (can be customized) |
| Cycle time | 3-4 seconds |
| Voltage, frequency | 220v-250v, 50Hz |
| Power | 200W |
| Voltage fluctuation | ±10% |
| Air pressure range | 0.5-0.8Mpa |
| Weight | 75kg |
| Dimensions | W2000xD500xH900mm |
