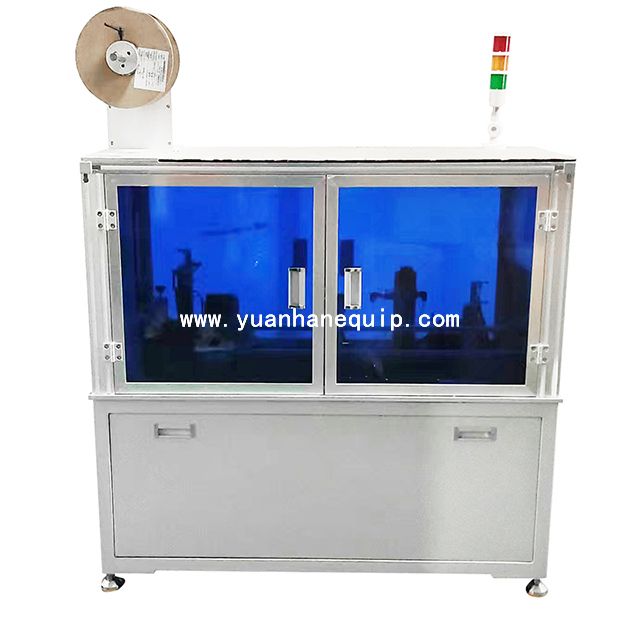

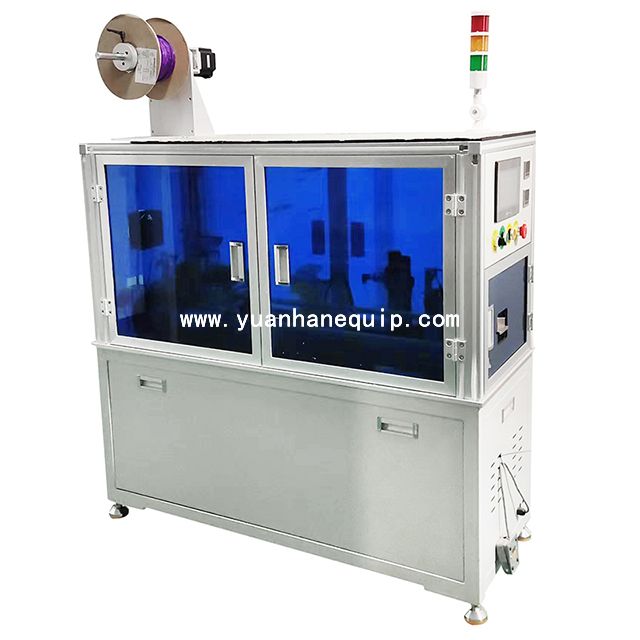

This automatic braided sleeving wrap-around machine is suitable for threading woven sleevings onto wire harness and cables.
|
Model:
|
|
|
Brand:
|
|
○ This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and send it to the side of the hollow guiding tube for threading.
○ Fast speed, good threading effect, simple operation and precise cutting
○ Suitable for wrapping-around different types of braided sleevings onto wire harness and cables
○ It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.
○ Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire and cable, etc.
○ Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.
| Model | YH-BZ1 |
| Applicable sleeving | fiber sleeving (woven mesh sleeving), melt cut materials |
| Applicable wire range | custom type (the wire diameter does not exceed the pipe diameter) |
| Applicable guide tube range | diameter 12-25mm |
| Cutting accuracy | ±3MM |
| Cutting length |
100mm-1200mm |
| Speed | no less than 1000PCS/hour (depending on sleeving size and manual operation speed) |
| Power | single phase AC 220V/50HZ |
| Energy consumption | 400W/Hr |
| Operating ambient temperature | -5 ° C ~ +40 ° C |
| Relative humidity | (40 ~ 90)% RH |
| Access gas source | 0.4~0.6MPA |
| Weight | about 80KG |
| Dimension | 500W*1230L*1115H(mm) (subject to actual production) |
| Note |
Special materials can be customized. |
