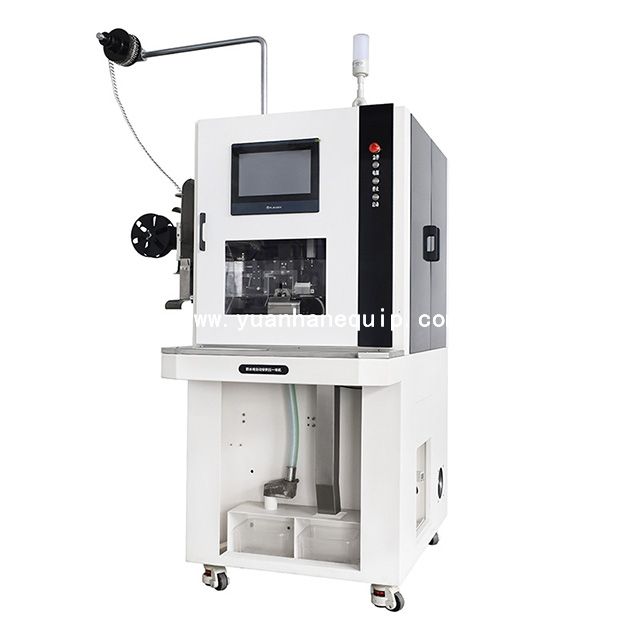

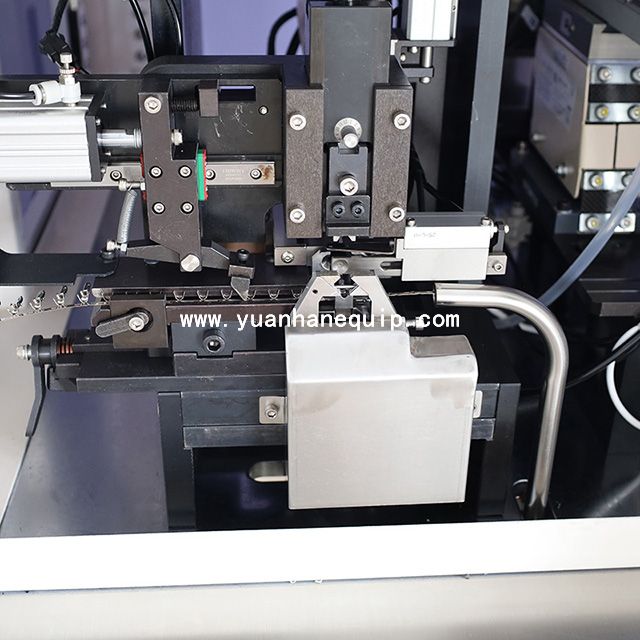

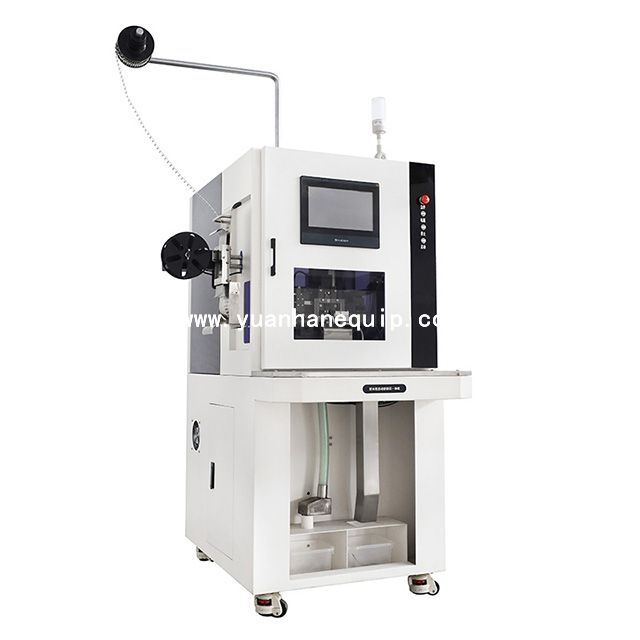

This is a semi-automatic wire stripping and rubber seals crimping machine. It is able to strip the wire, insert rubber seals and crimp terminals automatically.
|
Model:
|
|
|
Brand:
|
|

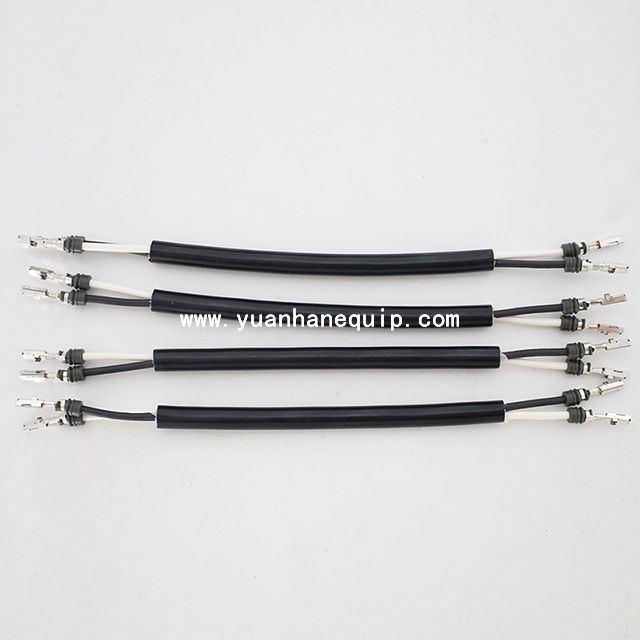

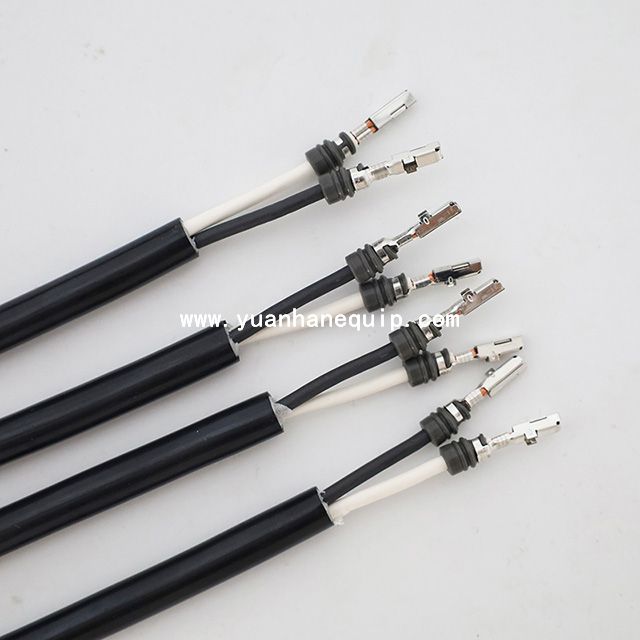

○ Function: wire stripping + rubber seals inserting + terminal crimping
○ Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon, fiber cable, etc.
| Model | YH-4000FS |
| Applicable wire diameter | φ1.0mm - 4.0mm |
| Processing capacity | 1200-1500PCS/H |
| The shortest stripping length of sheathed cable | 22mm |
| Stripping length | 1.0mm-10.0mm |
| Cutting tolerance | 0.05mm-0.1mm |
| Cutting tolerance | 0.05mm-0.1mm |
| Terminal type | open continuous terminal - horizontal |
| Crimping force | 2T(4T can be customized) |
| Stroke | 40mm |
| Power supply | single phase 200V~240V, 50/60Hz, 1500W |
| Air source | 0.4-0.6mpa（Please use dry and clean air） |
| Dimensions | 950*850*1650 mm |
| Weight | 250KG |
