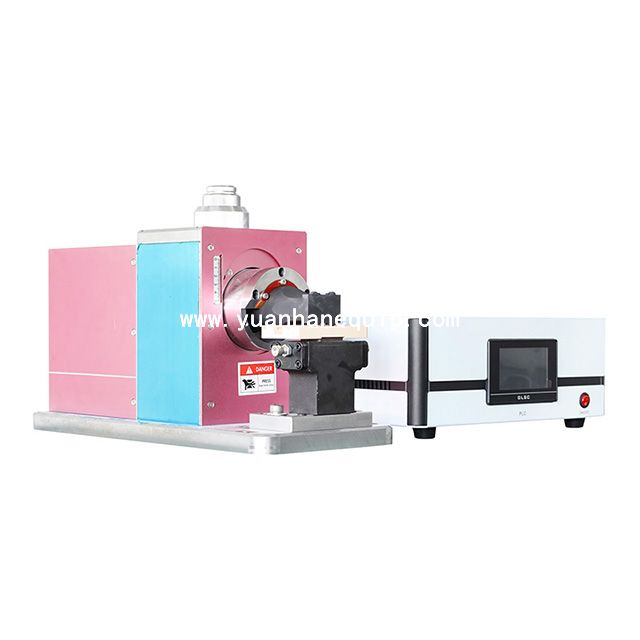

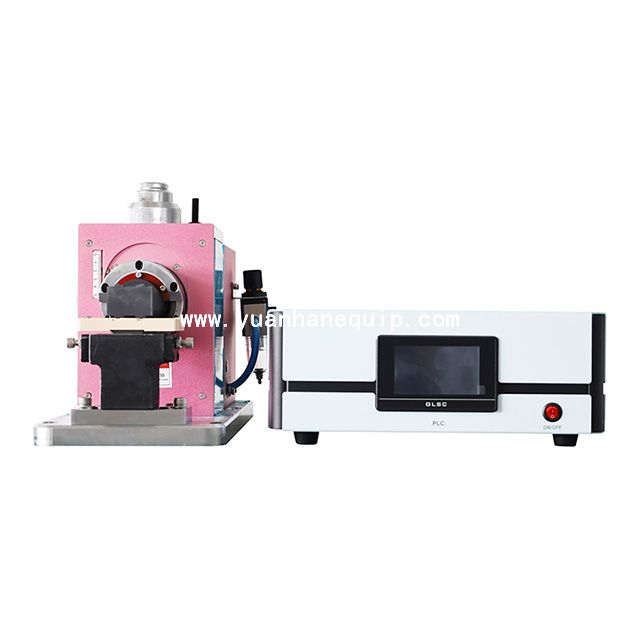

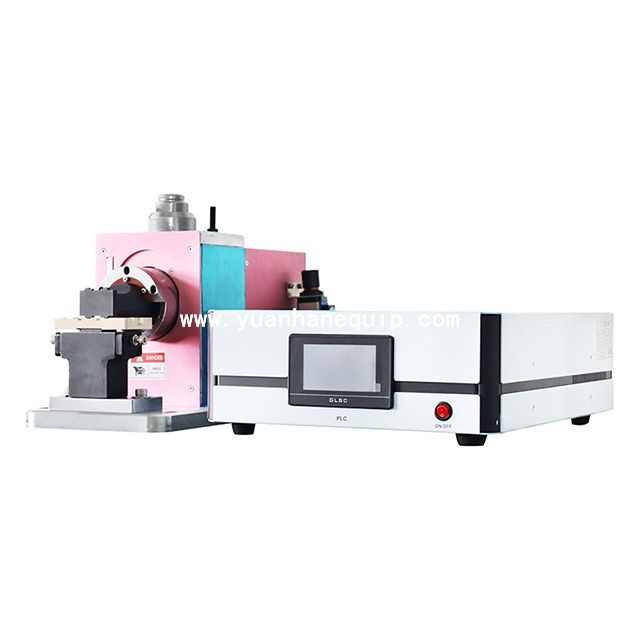

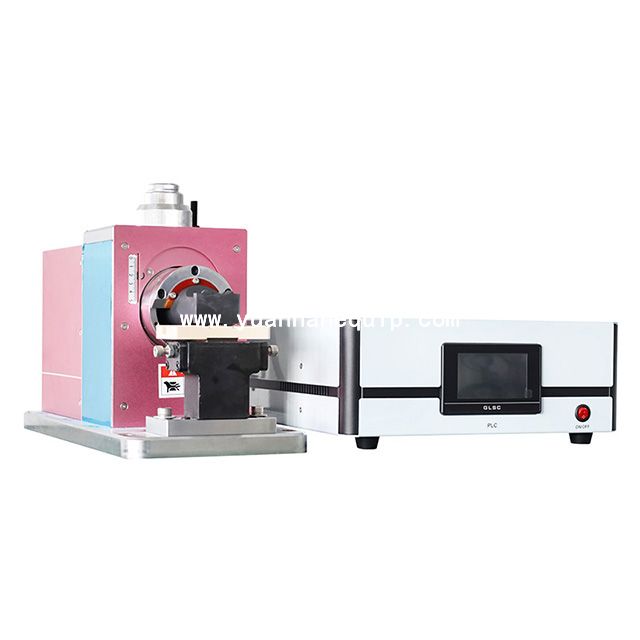

The ultrasonic multiple wire welding machine is a cutting-edge piece of equipment designed for precision welding of multiple wires simultaneously. This advanced machine utilizes ultrasonic technology to create strong and reliable bonds between wires, ensuring a secure connection that is resistant to vibration and environmental factors.
|
Model:
|
|
|
Brand:
|
|
○ Digital circuit, adjustable amplitude
○ Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust frequency when changing heads)
○ Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed
○ Frequency and overcurrent protection can be manually adjusted during welding
○ Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy
○ The power box maintains stable output when the voltage fluctuates
○ Advantages: short welding time, high efficiency, fast welding time, energy saving. Good conductivity and high strength after welding,
○ Resistance is zero. No need to add any solder. No sparks, no smoke, safe.
| Model | YH-N2042 |
| Input voltage | 220V |
| Maximum output power | 4200W |
| Working frequency | 20HZ |
| Welding time range | 0.5S-2S |
| Welding area range | 3x18mm |
| Operating humidity | 0-40° |
| Working air pressure | 0.2-0.8MPa |
| Ambient temperature | 20-70 |
| Bracket dimensions | 22x14x42cm |
| Electric box dimensions | 48x14x38cm |
| Machine weight | 40KG |
