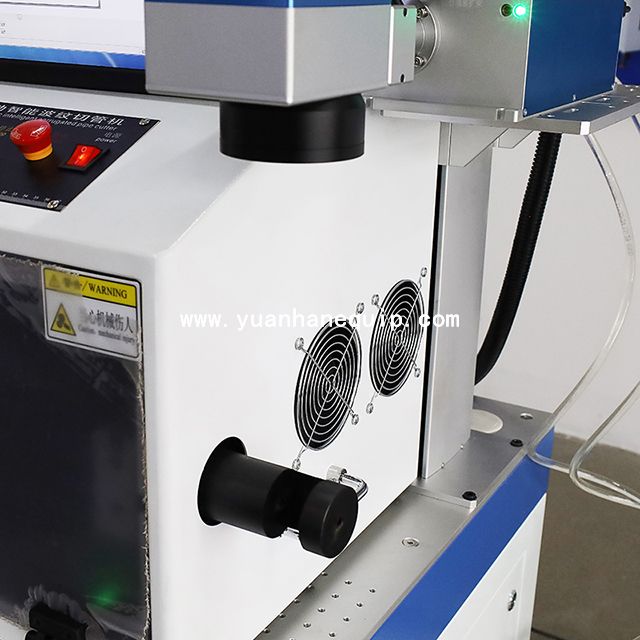

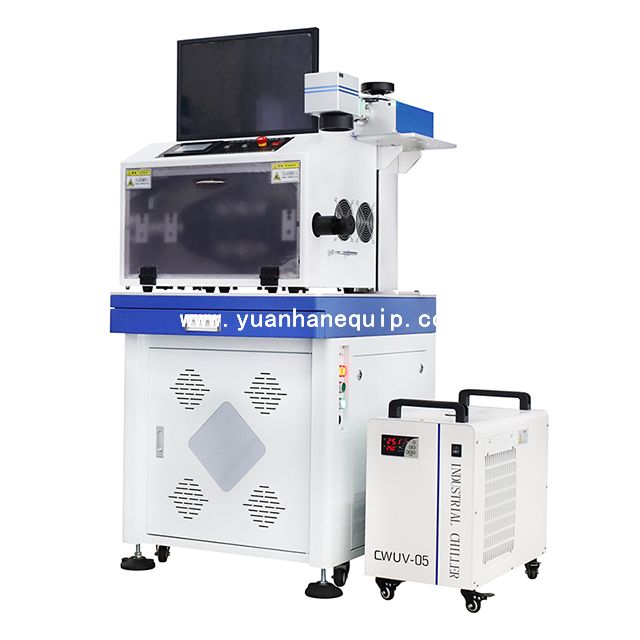

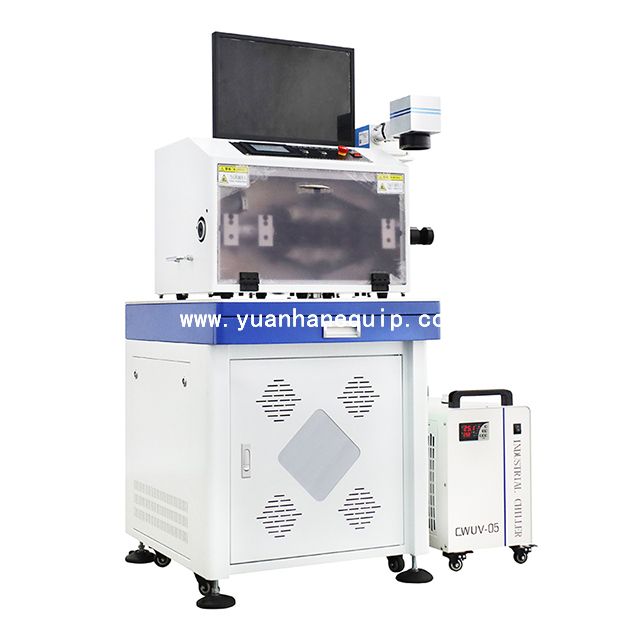

The fully automatic tube laser marking and cutting machine is an advanced piece of equipment designed for high-precision processing of tubular materials. This innovative technology integrates both cutting and marking functionalities, allowing for enhanced productivity and accuracy in various industrial applications.
|
Model:
|
|
|
Brand:
|
|

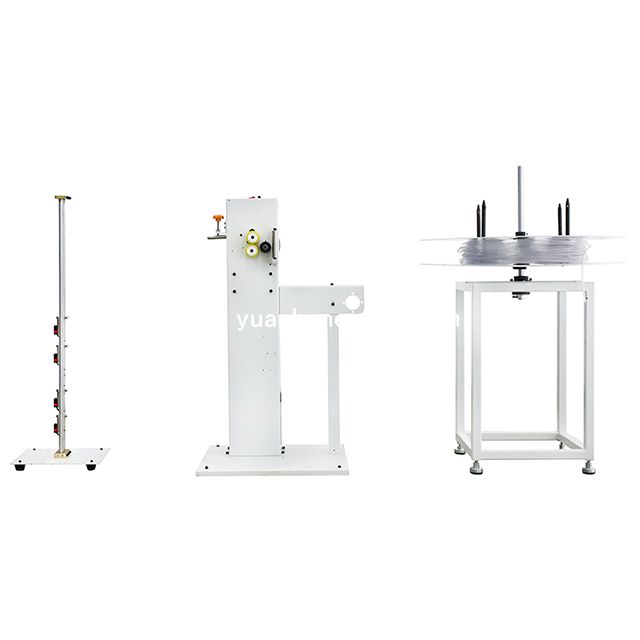

○ The automatic feeding system automatically feeds pipes into the cutting area, simplifying the operation process, reducing manual intervention, and improving efficiency.

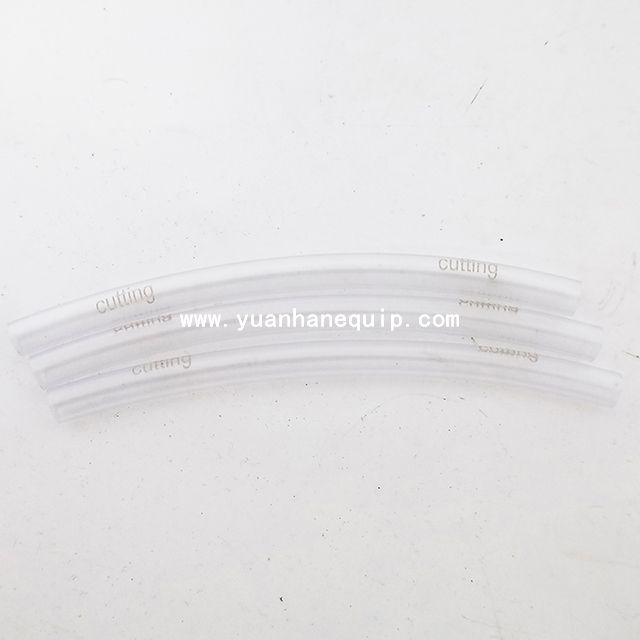

○ The laser marking function can permanently mark the pipes. After laser marking, the pipes are cut to the specified length.
○ With its fast processing speed and extremely short setup time, this fully automatic pipe laser marking and cutting machine significantly improves production efficiency while ensuring high-quality processing results.
| Cutting Machine Parameters | |
|
Cutting Accuracy |
± 0.1mm |
|
Cutting Length |
0.1 - 99999.9mm |
|
Maximum Cutting Diameter |
φ38mm |
|
Cutting Speed |
60 - 210pcs/min (depending on cutting length) |
|
Power Supply |
AC220V, 560W |
| Laser Marking Main Parameters | |
|
Working Voltage |
AC220V±10%, 50/60HZ (European standard power cord) |
|
Supported Formats |
DXF/AI/PLT/DST/SVG/GBR/BOT/BMP/JPG/GIF/PNG |
|
System Environment |
XP/WIN7/WIN8/WIN10 |
|
Laser Type |
UV Ultraviolet Laser |
|
Repetition Frequency |
30 - 110KHZ |
|
Communication Interface |
USB2.0 |
|
Cooling Method |
Circulating Water Cooling |
|
Laser Power |
5W |
|
Q Pulse Width |
1 - 20 μs (microseconds) |
|
Repeat Positioning Accuracy |
±0.003nm |
|
Minimum Marking Line Width |
0.01mm |
