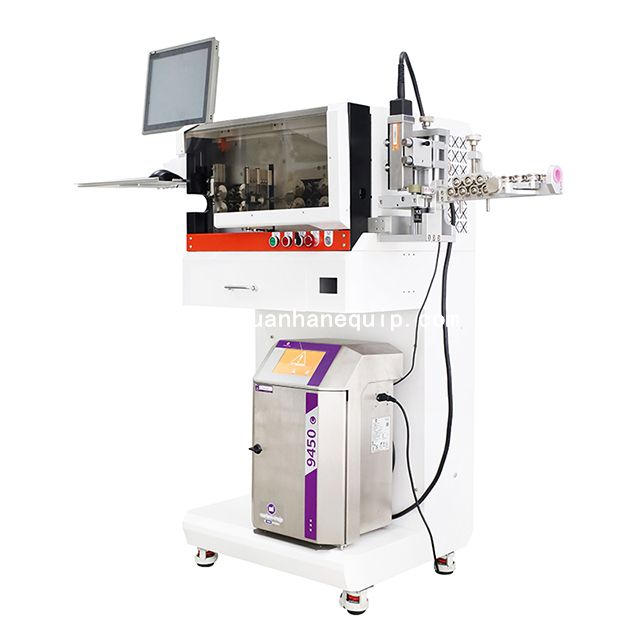

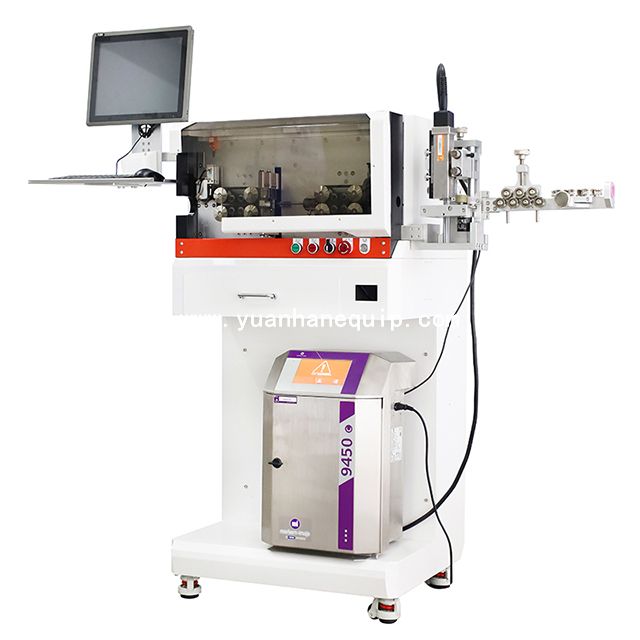

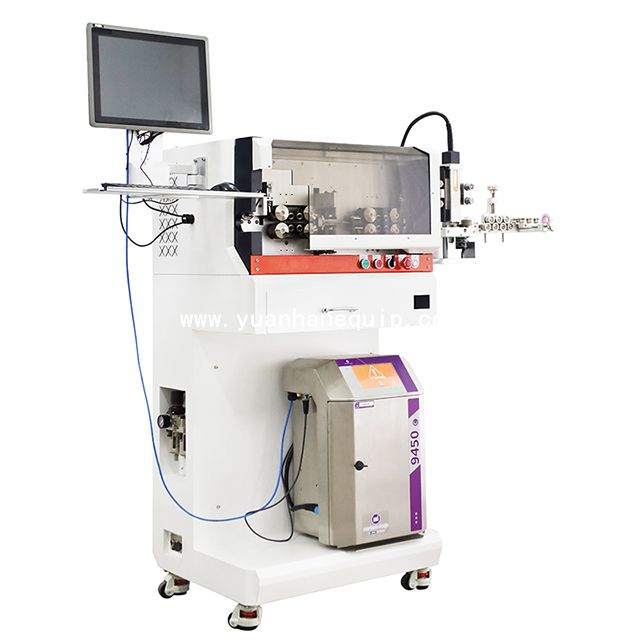

Redefine your wire processing efficiency with our all-in-one Wire Cutting and Stripping Machine, seamlessly integrated with high-speed inkjet printing and MES (Manufacturing Execution System) connectivity. Designed for modern manufacturing lines demanding precision, traceability, and intelligent workflow management, this equipment delivers end-to-end automation to streamline your wire harness production, reduce human error, and boost overall operational productivity.
|
Model:
|
|
|
Brand:
|
|
○ Function: cable inkjet printing, cable cutting, outer jacket and inner conductor stripping
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;
○ User-friendly system with intuitive operation via 7” color touchscreen;
○ Modular interface, easy to link accessories and peripheral equipment;
○ Modular design, can be upgraded in the future;
○ Various accessory options to customize the system. Special cable processing, non-standard customization.
| Model | YH-603HMESP |
| Display | 7-inch man-machine interface |
| Function | cable inkjet printing, cable cutting, outer jacket and inner conductor stripping |
| Wire type | single core wire, multi-core cable, sheathed cable, PVC cable, etc. |
| Processing range | 0.75 - 30 mm2 (≤ 10 cores) |
| Cutting length | 1mm-999999.99mm |
| Cutting tolerance | within 0.002*L (L=cutting length) |
| Stripping length |
head stripping: outer jacket: 10-200mm, core wire:1-50mm |
| Max. diameter of wire guiding pipe | Φ18 |
| Tool material | high speed steel |
| Productivity | 3500 PCS/hour, (sheathed wire 900pcs/H) according to the length and size of the wire |
| Drive mode | 16-wheel drive (feeding stepper motor, tool post servo motor); servo motor feeding optional |

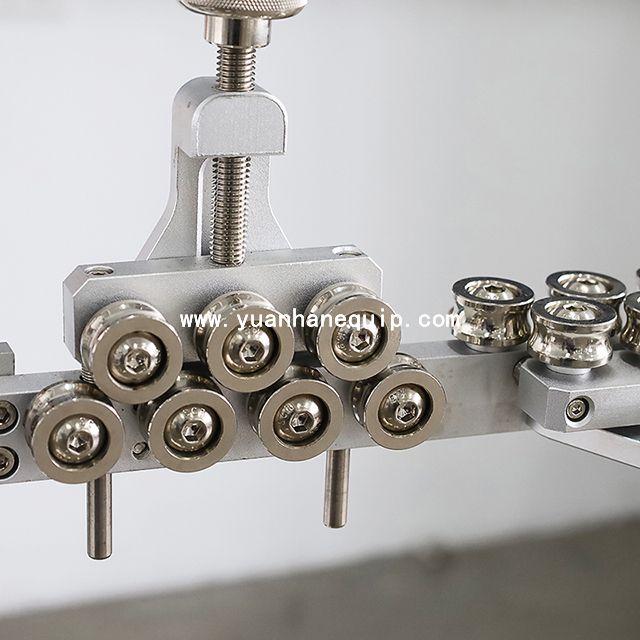

| Wire feeding method | belt feeding, no embossing and no scratches on the cable |
| Lifting operation mode | digital adjustment of the height of the pinch roller |
| Power supply | AC220V 50/60Hz; 110V 50/60Hz optional |
| Air source | 0.5Mpa clean air source |
| Dimensions | 68*48*55cm (L*W*H) |
| Weight | 95kg |
