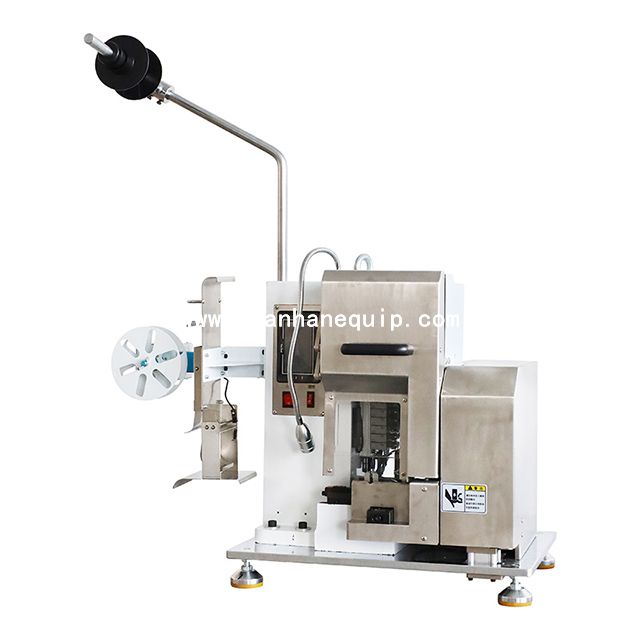

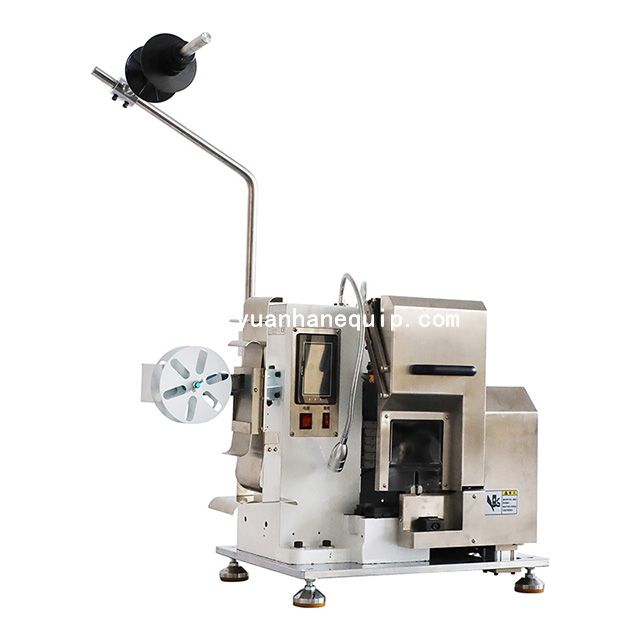

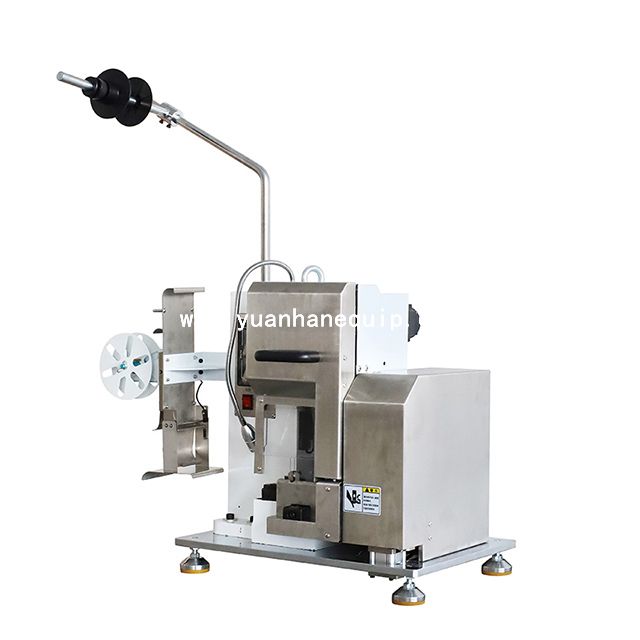

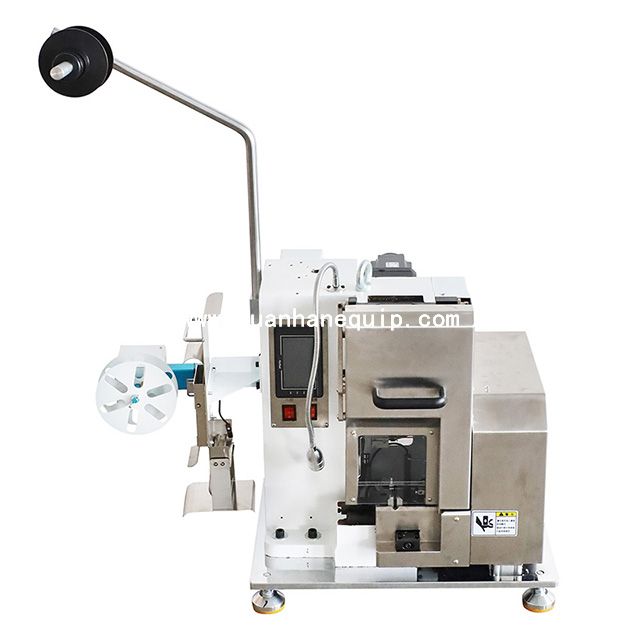

This is a servo motor driven cable stripping and terminal crimping machine. It is suitable for mounting European applicators such as JAM applicators, TE applicators, AMP applicators, Yazaki applicators, etc.
|
Model:
|
|
|
Brand:
|
|
○ Function: stripping and crimping
○ Modular structure, easy to adjust and maintain, divided into crimping part, stripping part, and clamping part;
○ The whole machine is controlled by PLC, all actions can be controlled separately, and debugging is convenient.
○ Suitable for European applicators, such as JAM applicators, TE applicators, AMP applicators, Yazaki applicators, etc.
| Model |
YH-BD2000 |
| Power supply | single-phase 200V-240V 50/60Hz |
| Air source | 0.5-0.6mpa (please use dry and clean air) |
| Applicable wire diameter | AWG32#-AWG20# (depending on the wire) |
| Wire types | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc. |
| Stripping length | 1.0mm-6.0mm |
| Cutting error | 0.05mm-0.1mm |
| Position error | 0.05mm-0.1mm |
| Terminal types | open continuous terminals, horizontal terminals |
| Crimping force | 2T |
| Stroke | 30mm |
| Dimensions | W730*L350*H700mm |
| Total weight | 100KG |
