Kunshan Yuanhan Electronic Equipment Co., Ltd.
Kunshan Yuanhan Electronic Equipment Co., Ltd.
Our 6-channel number tube cutting and laser printing machine is a reliable and efficient solution for your production needs. With its advanced features and capabilities, this machine will help you achieve higher levels of productivity and accuracy in your manufacturing processes.
|
Model:
|
|
|
Brand:
|
|

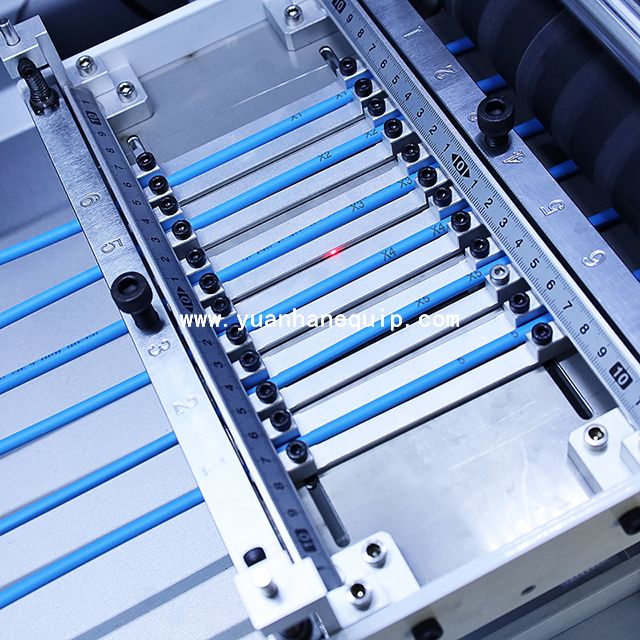

○The 6-channel number tube cutting and laser printing machine is equipped with six cutting channels, allowing for efficient and precise cutting of number tubes. This multi-channel design enables simultaneous processing of multiple tubes, increasing productivity and reducing processing time.

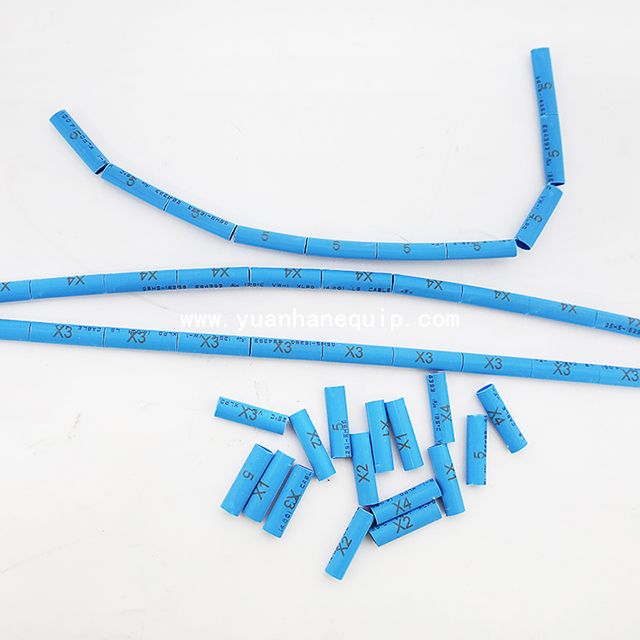

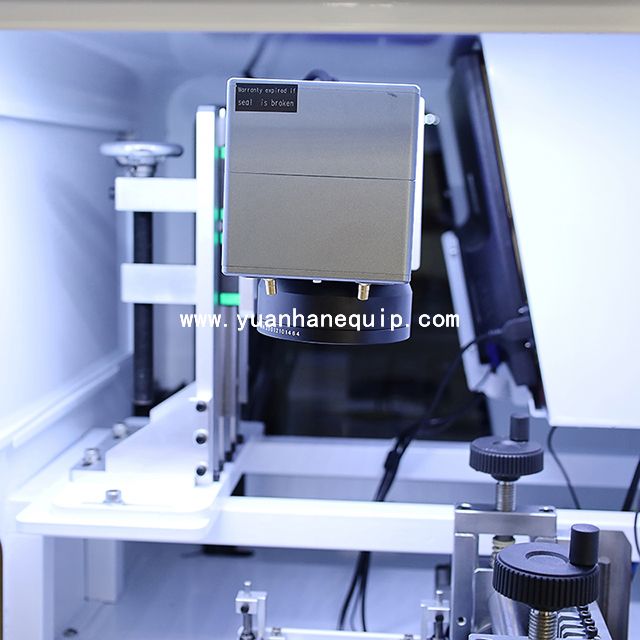

○In addition to its cutting capabilities, this machine is also equipped with a high-powered laser printing system. This system allows for the precise and permanent marking of numbers on the tubes, ensuring clear and legible identification.

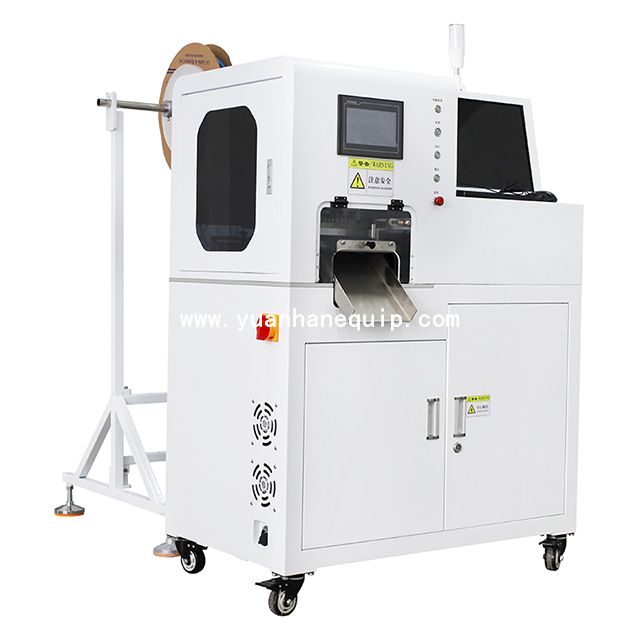

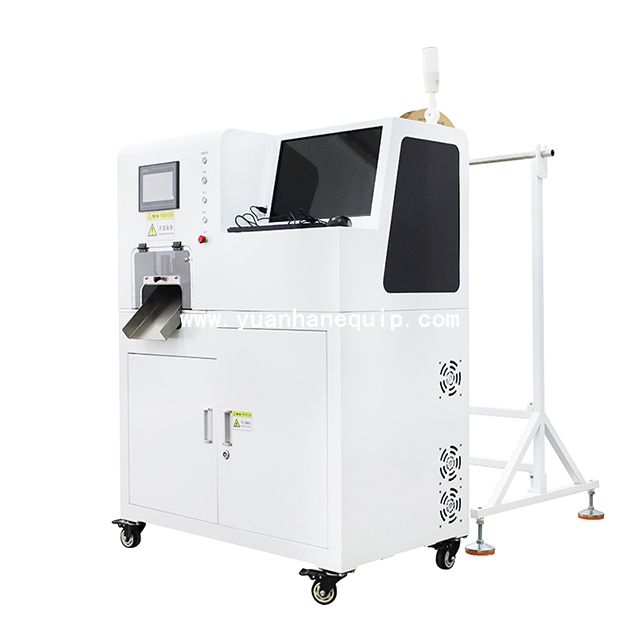

○The machine is built with quality and durability in mind, featuring a robust construction that can withstand the demands of continuous use in industrial settings. Its user-friendly interface makes operation simple and intuitive, allowing for easy setup and adjustment of cutting and printing parameters.
| Model | YH-TG210JG |
| Input voltage | 220V-AC |
| Frequency | 50/60HZ |
| Rated power | 2000W |
| Display | 19 inches |
| System control mode | PLC/industrial control integrated machine/host computer software |
| Number tube compatibility range | φ1.5/φ40 standard |
| Cutting length | 8MM-300MM (tolerance ±0.2mm) |
| Printing mode | 1-6 channels (free adjustment) |
| Cutting method | full cut/half cut |
| Operating temperature | 0℃-50℃ |
| Storage temperature | -20℃-60℃ |
| Operating humidity | 10%RH~90%RH (no condensation) |
| Anti-interference ability | Interference voltage: 1500Vp-p Pulse period: 1us |
| Duration | 1 minute |
| Air | no corrosive gas |
| Cooling method | forced water cooling |
| Dimensions | Length 900*Width 550*Height 1290 |
| Weight | 175KG |
