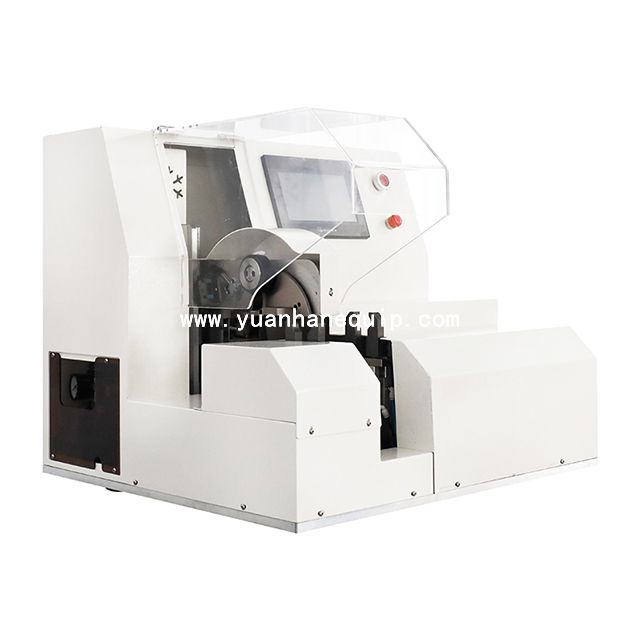

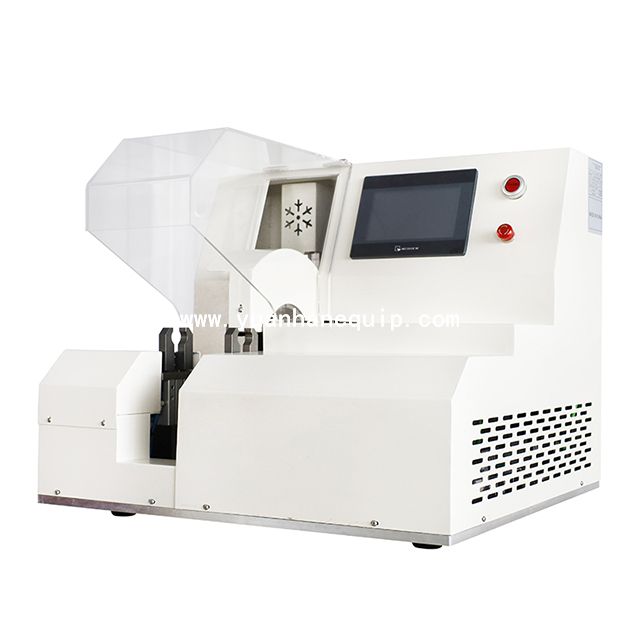

This semi-automatic multi-point tape wrapping machine is suitable for wrapping insulating tape around a single rigid pipe or rigid wire.
|
Model:
|
|
|
Brand:
|
|

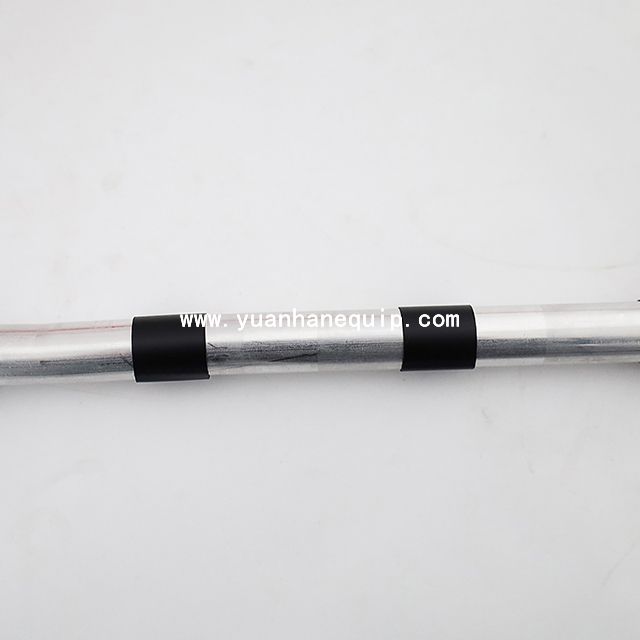

○ Applicable materials: single rigid pipe or rigid wire.
○ Different wire diameters and taping turns can be adjusted digitally as required.

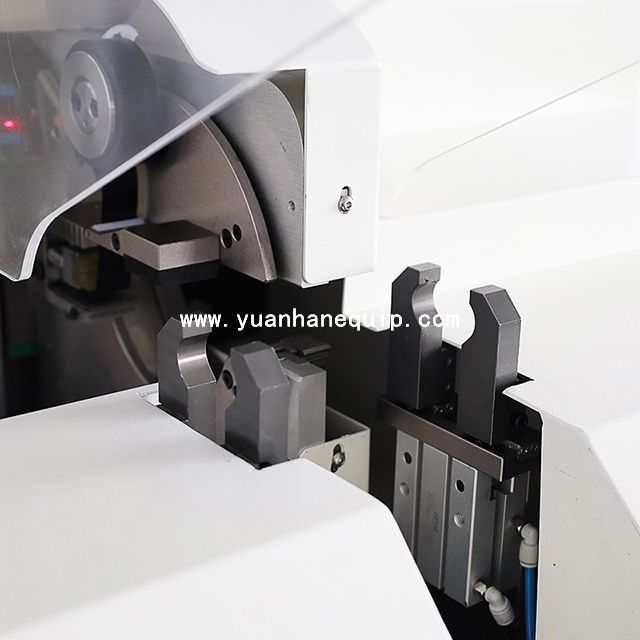

○ After manually placing the pipe/wire, the machine automatically clamps, and automatically cuts off the tape after wrapping.
○ The operation is simple and convenient, which can significantly reduce the labor intensity of workers.
| Model | YH-BD305 |
| Working environment | 0~40℃(ambient temperature) |
| Applicable air pressure | 0.4 MPa - 0.6 MPa |
| Power supply | two-phase, AC220V, 50HZ |
| Power | 400W |
| Working efficiency | 6s |
| Tape material | PVC, cloth tape, acetate cloth tape, etc. |
| Winding position accuracy | within ±2 |
| Winding overlap | within ±1.5 |
| The length of the workpiece | ≥120mm |
| The diameter of the workpiece | 6mm-28mm |
| Tape width range | ≤40mm |
| The outer diameter of the tape | ≤105mm |
| Distance from the end position | ≥30mm |
| Dimensions | 600mm x 650mm x 560mm (LxWxH) |
| Weight | 70 KG |
