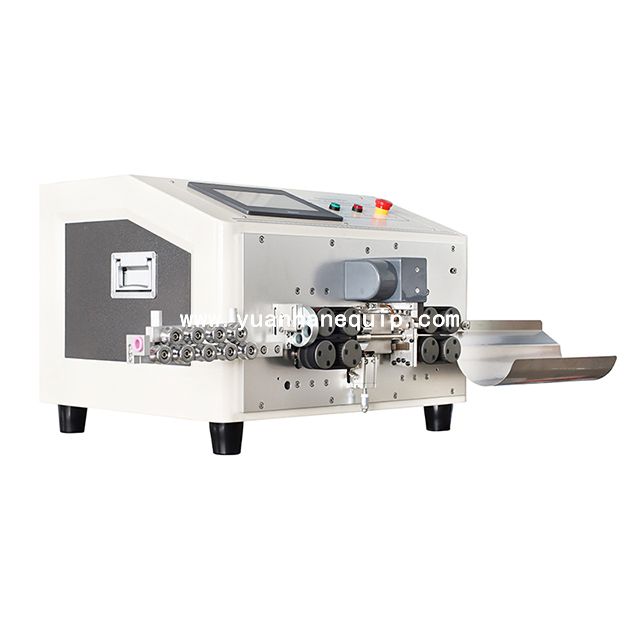

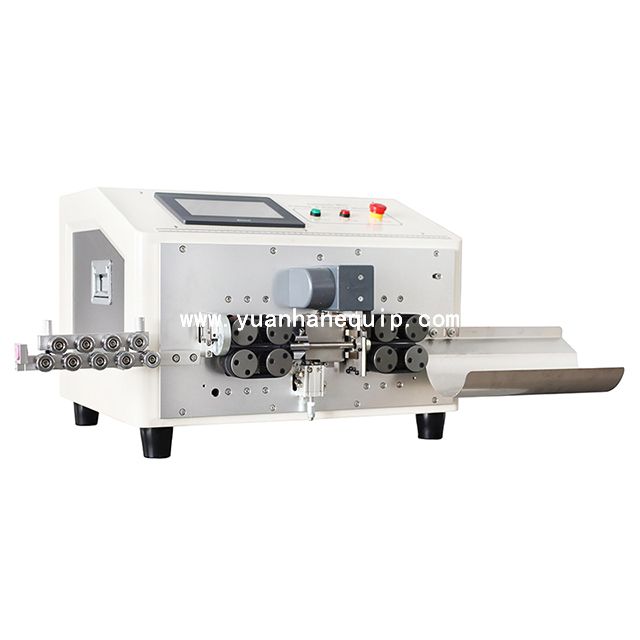

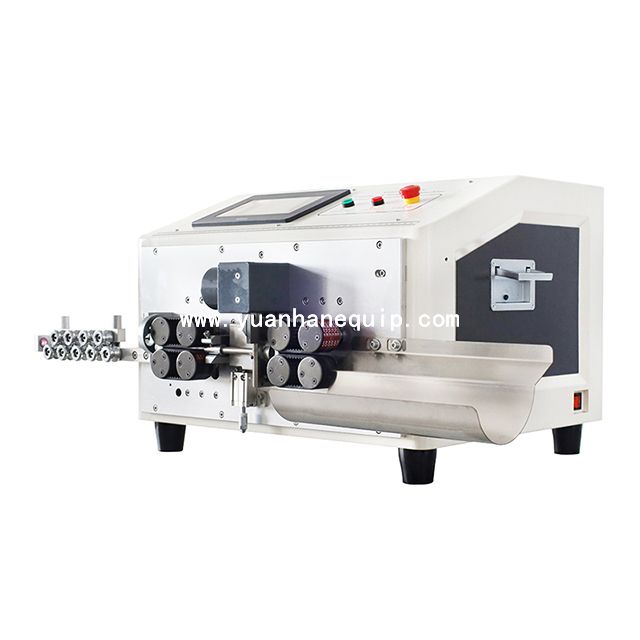

Our multi-core wire cutting and stripping machines are mainly used to process multi-core round sheathed wires such as power plug wires, lamp rubber sheathed wires, sensor sheathed wires, data cables, shielded braided sheathed wires, etc.
|
Model:
|
|
|
Brand:
|
|

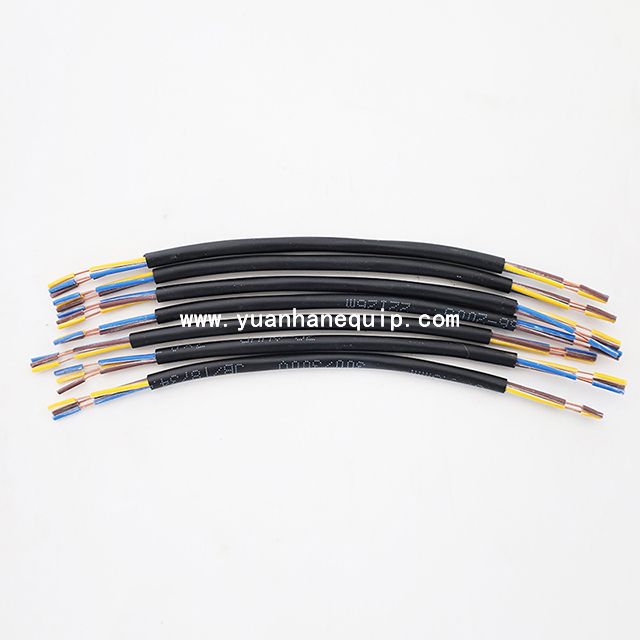

○ Wire types: power plug cables, lighting rubber-jacketed cables, sensor cables, data cables, shielded braided cables, and other multi-core round-jacketed cables.
○ Functions: Total length cutting, outer and inner core stripping.
○ A pneumatic clamp has been designed to comb the core wires for smooth stripping.
○ The design features reversible blades: a round blade for outer stripping and a flat/threaded blade for inner stripping.

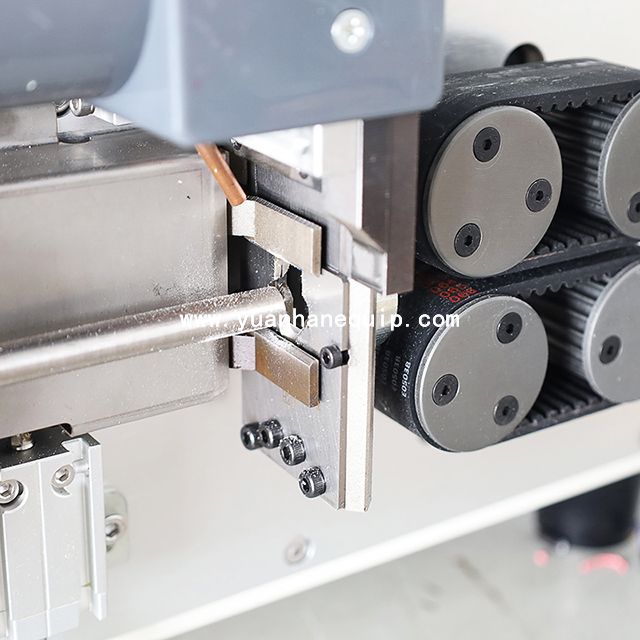

○ The 8-wheel crawler-type wire feeder provides enhanced friction and eliminates surface marks, ensuring precise cutting length and accurate stripping. A bidirectional lead screw pressure wheel aligns the wire size with the center of the cutter blade, ensuring a smooth stripping cut without scratching the core wire.
○ Fully computerized numerical control controls wire length, cutter depth, stripping length, and wire pressure are all controlled via a simple, user-friendly touchscreen interface.
|
Model |
YH-880C |
|
Input Power Supply |
AC220V 50/60HZ |
|
Dimensions |
L570mm x W550mm x H410mm |
|
Weight |
53kg |
|
Overall Power |
2.0KW |
|
Rated Power |
0.8KW |
|
Working Air Pressure |
0.5 - 0.8MPa |
|
Wire Core for Cutting |
2 - 8 cores |
|
Cutting Wire Diameter |
2 - 10mm |
|
Cutting Wire Length |
0.01mm - 999999.99mm |
|
Stripping Head Length |
Outer layer 0.01mm - 200.00mm |
|
Stripping Tail Length |
Outer layer 0.01mm - 70.00mm |
|
Stripping Head Length (Core Wire) |
Core wire 0.01mm - 20.00mm |
|
Stripping Tail Length (Core Wire) |
Core wire 0.01mm - 20.00mm |
|
Blade Material |
Imported high - speed steel |
|
Wire Stripping Precision |
Silent hybrid stepping motor 0.01mm |
|
Detection Function |
Wire Breakage Detection |
|
Conduit Swing |
Pneumatic |
|
Pressure Adjustment |
Bidirectional screw computer - adjusted pressure |
|
Wire Feeding Method |
8 - wheel crawler - type wire feeding |
|
Transmission Structure |
Precision double - screw, guide bush column, gear rack |
|
Capacity per Hour |
Approximately 600 - 1000 pieces |
|
Program Storage |
Serial number 00 - 999 |
|
Auxiliary Functions |
Automatic in/out wire, timed start, point - by - point adjustment |
|
Display Method |
Full - touch 7 - inch color display screen |
