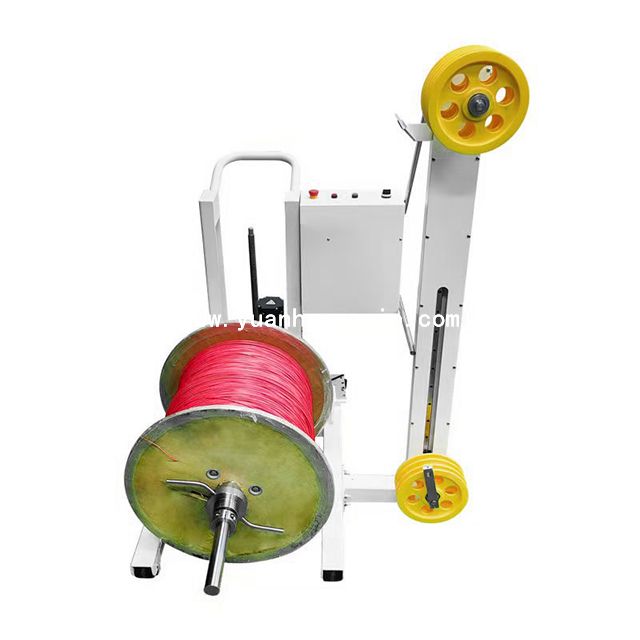

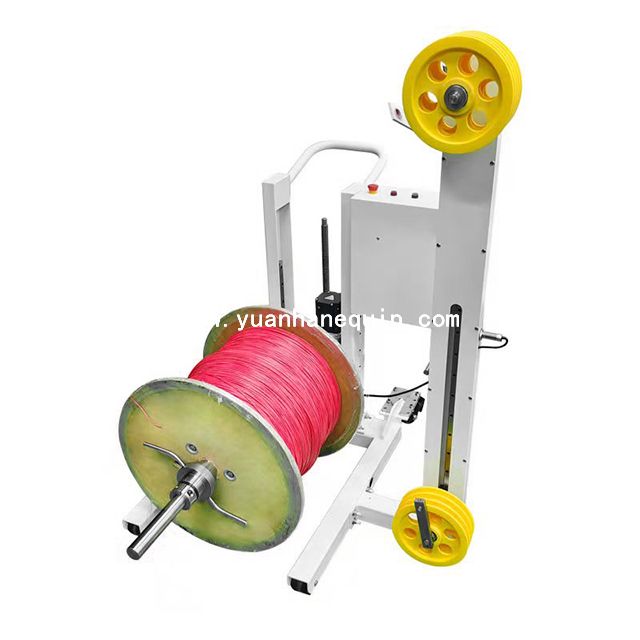

The large mobile lifting servo pay-off machine can only be used for shaft assembly, with a shaft diameter of 400-800mm and a shaft width of 500mm.
|
Model:
|
|
|
Brand:
|
|
○ The large mobile lifting servo pay-off machine can only be used for shaft assembly, with a shaft diameter of 400-800mm and a shaft width of 500mm.
○ This machine is a heavy-duty drum type automatic pay-off stand.
○ When installing the wire reel, just place the wire reel between the two rollers. The pay-off machine can move like a trolley and lift the wire reel through the lifting motor. There is no need to manually carry the wire reel, which greatly simplifies the process of installing and replacing wire.
○ The rotation of the wire reel is driven by a servo motor, and the pay-off speed can be automatically adjusted according to the position of the pulley. The higher the pulley position, the faster the pay-off speed.
○ This machine has a forward and reverse switching function. When installing the wire reel, there is no need to consider the forward and reverse direction of the wire reel, and the installation is easy.
|
Model |
YH-SJ100 |
|
Shaft outer diameter |
400-800mm |
|
Shaft inner hole |
35-85mm |
|
Equipment weight |
100KG |
|
Rotating motor |
750W servo motor |
|
Lifting motor |
86 Closed Loop |
|
Motor speed |
3000r/min |
|
Pay-off speed |
60m/min |
|
Load-bearing |
120 kg |
|
Motherboard |
Self-developed |
|
Wire storage wheel |
4 groups |
|
Power supply |
AC20V,50/60Hz |
|
Dimensions |
1100*1120*1250mm |
|
Power |
1400W |
