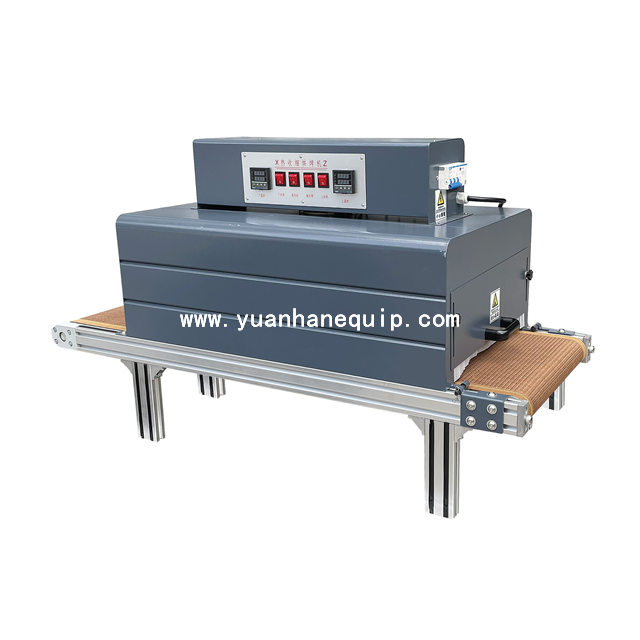

This machine is a closed aluminum alloy profile structure heat shrink machine, suitable for heat shrinking of relatively small products such as wiring harness heat shrink tubes, heat shrink film packaging, circuit boards, inductor coils, copper bars, hardware accessories, etc.
|
Model:
|
|
|
Brand:
|
|
○ The machine uses far-infrared heating tubes for heating. There are heating tubes installed on the top, bottom, left and right sides, which can heat at the same time; and it is equipped with a high-speed centrifugal fan. When heating, the fan can stir the heat evenly to keep the whole box at a constant temperature; it can make the products that need to be heat-shrunk and baked be heated all around at the same time, maintaining the original characteristics of the product, so that the product will not deform or discolor after heat shrinking and baking, and the quality is stable;
○ Use high-temperature Teflon mesh belt (temperature resistance 0~350°), assembly line mode feeding, fast baking speed and high efficiency;
○ Aluminum alloy profile structure mode , can be customized at will, modify the size and structure of the machine, and the model has a compact structure and exquisite design. It has dual-function options of floor-standing and desktop, and can be moved at will to connect the production line and synchronize the production line;
○ Intelligent control system, heating temperature and speed can be adjusted at will, which can adapt to the temperature and heat shrink time requirements of different products;
○ Independent control electric box, away from high temperature; the heating box has a double-layer design with high-temperature insulation cotton (temperature resistance 1200°) in the middle, so that the surface temperature of the box will not overheat, which not only makes the working environment comfortable, but also reduces energy waste.
| Model | YH-848BL |
| Mechanical dimensions | L1200*W480*H680 |
| Box dimensions | L800*W480*H280 |
| Heating space | L800*W400*H150 |
| Weight | 60kg |
| Conveying speed | 0-6m/min |
| Mechanical power | 3.6KW |
| Conveying load | 20kg |
| Conveyor belt material | High temperature resistant Teflon mesh belt |
| Heating temperature | 0-260° |
| Heating method | Two sets of temperature control (double-sided heating) |
| Heating tube | Far infrared heating tube |
| Hot air blower | Yes |
| Heating device | No |
| Conveyor belt guide | Yes |
| Power supply | 220V 50HZ |
