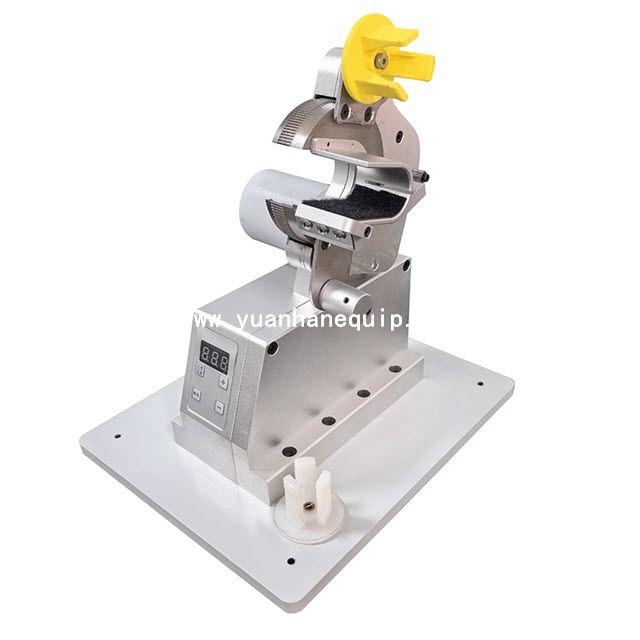

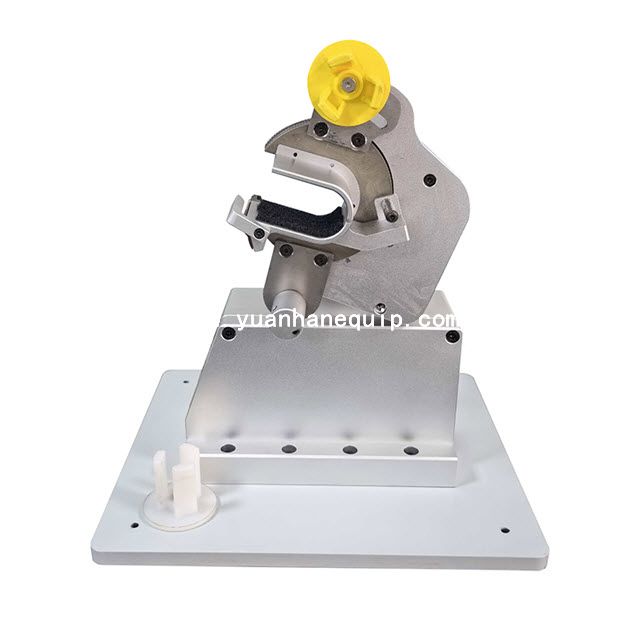

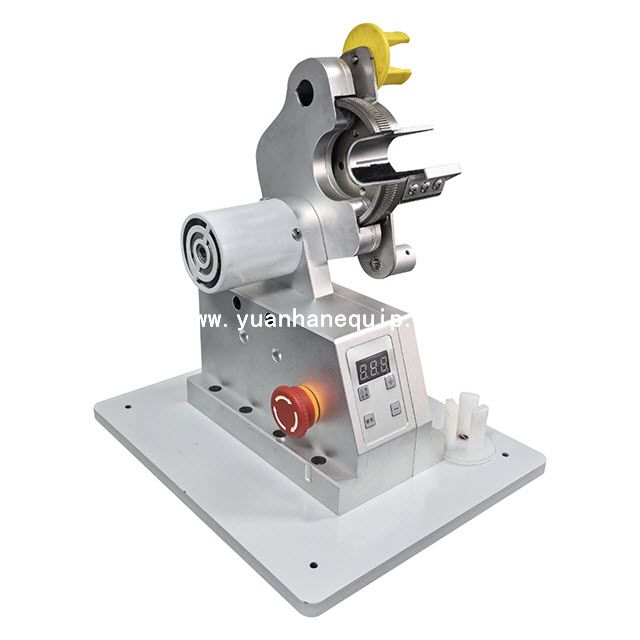

The small wire harness tape wrapping machine is an ideal device for achieving efficient and precise taping in a limited space. It is particularly good at handling complex line shapes and is a powerful assistant for improving the automation level of production lines and product quality.
|
Model:
|
|
|
Brand:
|
|
○ Its compact design makes it easy to deploy and move anywhere on the production line.
○ It supports a wide range of wire diameters, from 3 mm to 25 mm, and is compatible with a variety of tape materials, including PVC, vinyl, flannel, cloth, high-temperature tape, and ceramic tape.

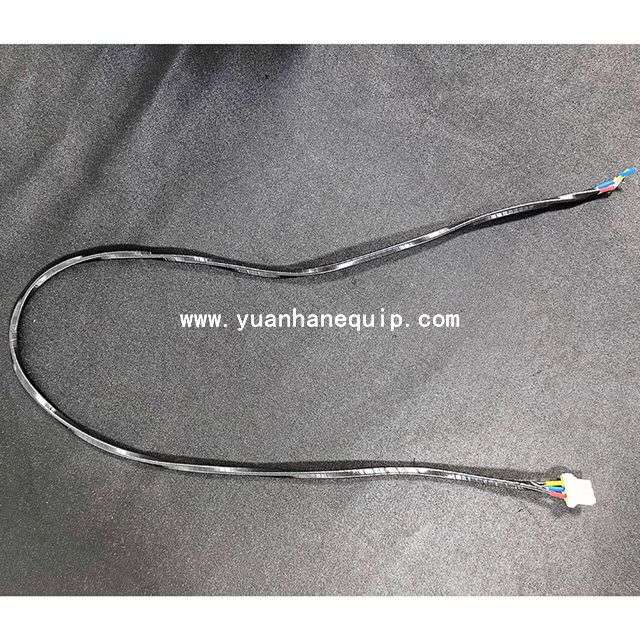

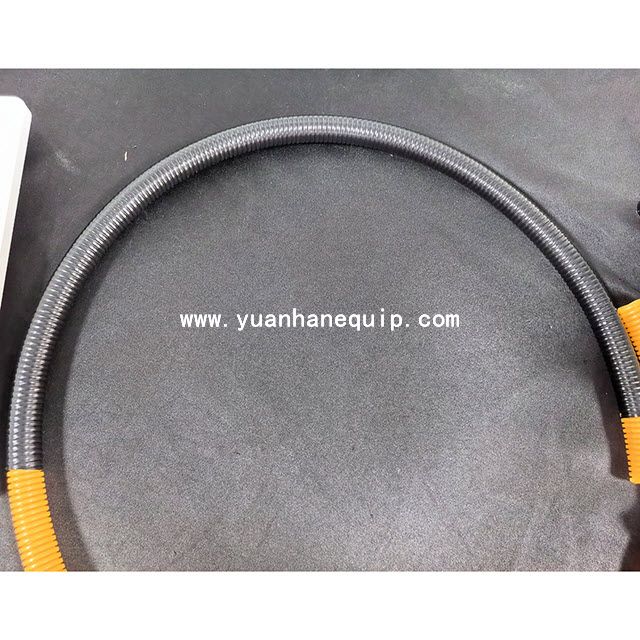

○ It is particularly suitable for wrapping short wires and multi-branch wires. Its simple operation effectively improves the processing efficiency and aesthetics of these products.
○ It is suitable for processing wires that require insulation, identification, or bundling, such as automotive wiring harnesses, appliance wiring, internal cables of electronic devices, and charging cables.
|
Model |
YH-25W |
|
Power Supply |
AC 100-240V, 50/60Hz (Universal Voltage) |
|
Machine Dimensions |
W300mm × D250mm × H330mm |
|
Machine Weight |
10 kg |
|
Applicable Cable Diameter |
Ø 3 - 25 mm |
|
Applicable Tape Width |
5 - 25 mm |
|
Max. Tape Roll Outer Diameter |
Ø 110 mm |
|
Tape Roll Core Inner Diameter |
38 mm or 32 mm (Optional, Customization Available) |
|
Wrapping Method |
Spiral Wrap |
|
Wrapping Direction |
Left / Right (Switchable) |
|
Speed Adjustment |
1 - 9 Levels Adjustable |
|
Spot Wrap Mode |
1 - 99 Turns Settable |
