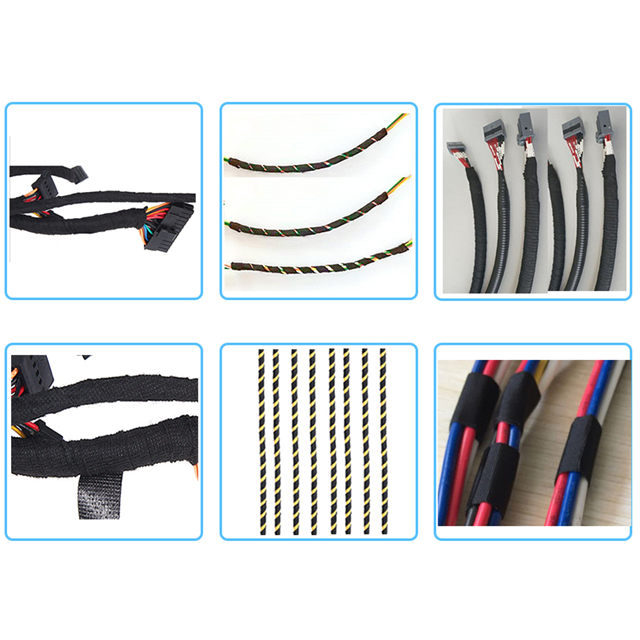

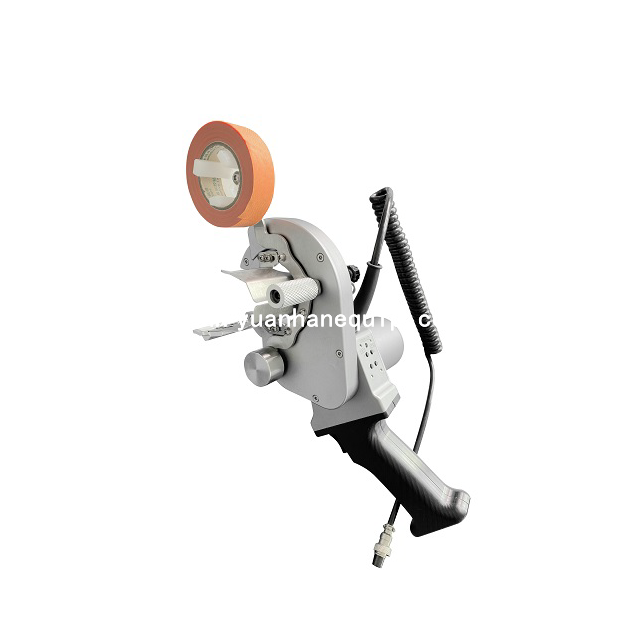

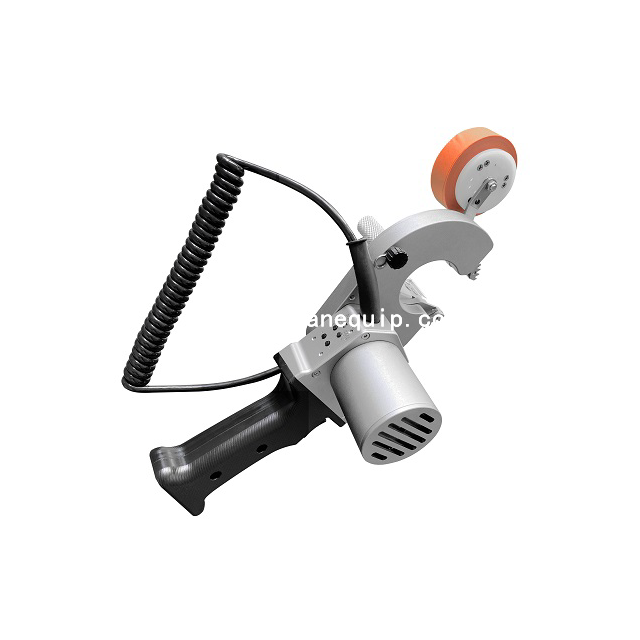

The handheld tape wrapping machine can handle a wide variety of tapes, including electrical tape, PVC tape, and acetate cloth tape, making it suitable for numerous applications. Whether you are working on bundling electrical wires, packaging small items, or performing maintenance tasks that require tape wrapping, this handheld machine gets the job done efficiently.
|
Model:
|
|
|
Brand:
|
|
○ With this handheld device on the support frame, various tapes can be used to wind high - quality bundles, achieving the same effect as other devices. It is sturdy, lightweight, easy to operate, and less likely to cause fatigue.
○ The integrated cutter with a protective cover can cut tapes of any material. The operation is simple.
○ The tape roll can be adjusted to the required direction, ensuring the tape surface is of good quality with appropriate tension and no wrinkles.
○ The tool with a protective cover is simple and ergonomic. This device is highly efficient due to its convenient movement.
○ The distance and overlap of the tape can be adjusted to reduce waste. It automatically jumps to the next position, preparing for the next step without the need for additional processes.
○ Branches can be skipped. If required, tapes with numbers can be used to fix before or after the branch nodes.
|
Model |
YH-835S |
|
Power supply |
100 - 240V 50 - 60HZ |
|
Tape specifications |
Width 10 - 25MM; Outer diameter less than 110MM |
|
Inner diameter specification |
Standard 25/32/38; Other specifications can be customized |
|
Weight |
Approximately 4KG for the whole machine (including packaging) |
|
Wire harness diameter |
35 (8 - 35MM); 55 (20 - 55MM) |
|
Winding speed |
130 - 400 revolutions per minute |
|
Type of tape |
Cloth - based, electrical tape, PVC tape, acetate cloth tape, etc. |
