Our rotary multi-core cable cutting and stripping machine is designed to streamline the process of cutting and stripping both outer jacket and inner core insulation of multi-core cables. This advanced machine is equipped with cutting-edge technology to ensure precise and efficient operation.
|
Model:
|
|
|
Brand:
|
|

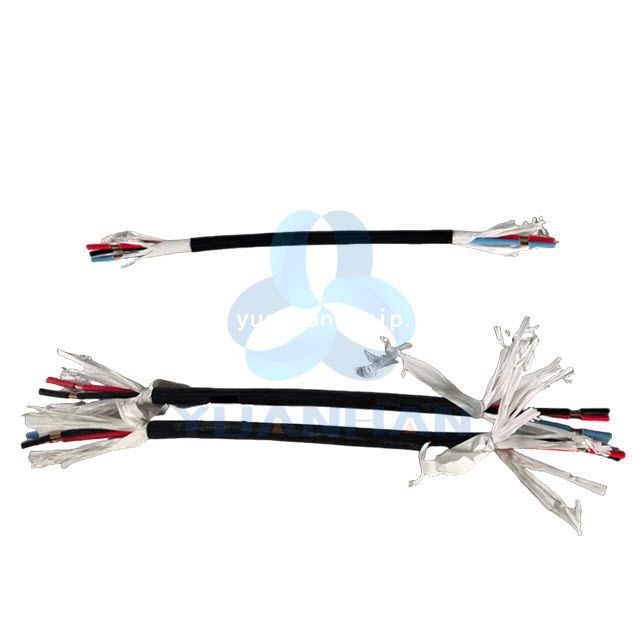

○ With the ability to handle multiple cores simultaneously, our rotary multi-core cable cutting and stripping machine is perfect for high-volume production environments. The machine is capable of cutting cables to the desired length and stripping both the outer jacket and inner core insulation with precision and consistency.
○ Our machine is designed with user-friendly controls and adjustable settings to accommodate a wide range of cable sizes and types. The rotary cutting mechanism ensures clean and accurate cuts, while the stripping function removes insulation without damaging the core.
○ In addition, our rotary multi-core cable cutting and stripping machine is built with durability and reliability in mind, ensuring long-lasting performance and minimal downtime. This machine is a valuable asset for any manufacturing or assembly operation that requires efficient cable processing.
|
Model |
YH-612XH |
|
Display method |
7-inch human-machine interface |
|
Function |
cutting and stripping both outer jacket and inner core insulation of multi-core cables |
|
Processing range |
6-120mm² |
|
Cutting length |
1mm-999999.99mm |
|
Cutting tolerance |
Within 0.002*L (L=cutting length) |
|
Stripping length |
side A full stripping: 1 - 300mm; side A half stripping: 1-1000mm |
|
Max. diameter of guiding pipe |
Φ24 |
|
Wheel lifting method |
Stepper motor lifting wheel |
|
Tool material |
High quality imported high speed steel |
|
Productivity |
800-1000pcs/hour (depending on the length and size of the cable) |
|
Drive mode |
24-wheel drive (feeding stepper motor, tool holder servo motor); servo feeding optional |
|
Wire delivery method |
Belt feeding, no embossing or scratches on the cable. (With peeling and pressing function) |
|
Lifting operation mode |
Digitally adjustable pressure wheel height |
|
Power supply |
AC220V 50/60Hz; 110V 50/60Hz optional |
|
Air source |
0.5-0.8Mpa clean air source |
|
Dimensions (length*width*height) |
1400*720*1460mm |
|
Net weight |
300KG |
