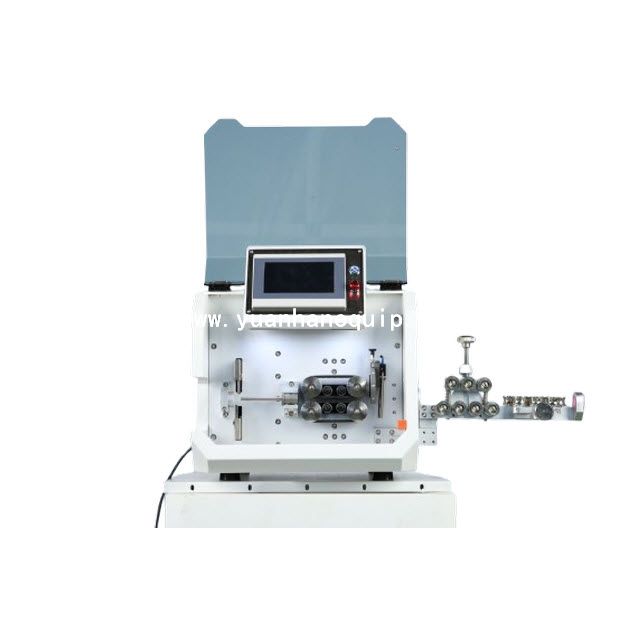

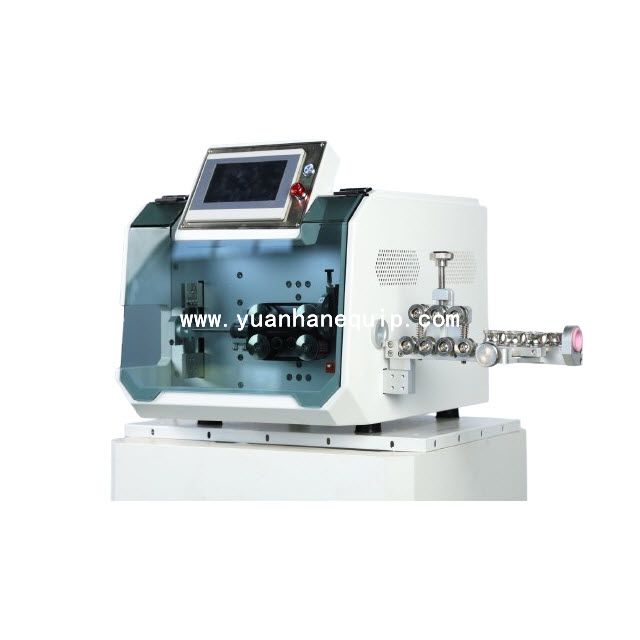

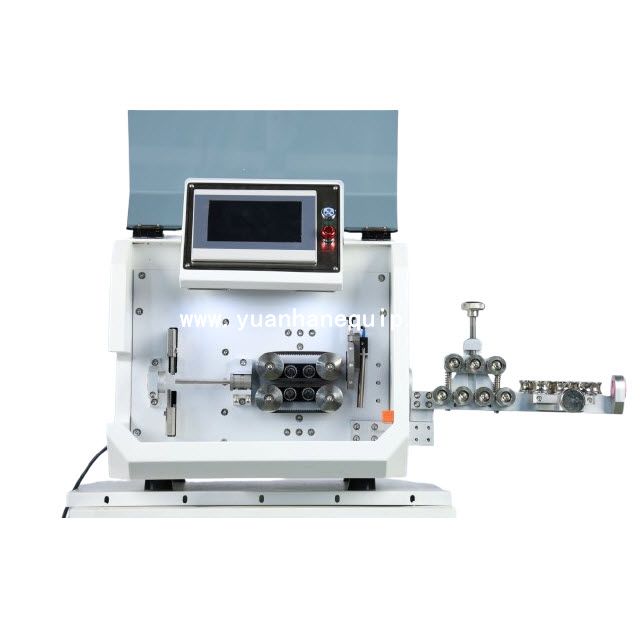

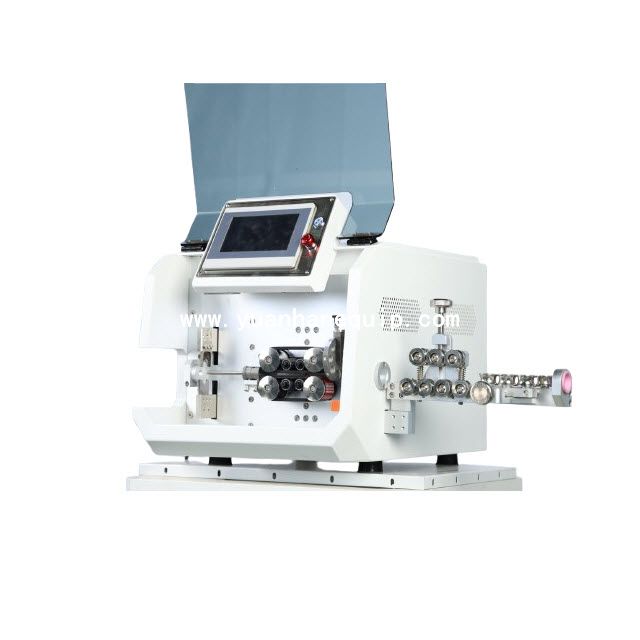

The fully automatic cable cutting machine is a technological innovation designed to streamline the process of cable preparation, increase productivity, and reduce human error.
|
Model:
|
|
|
Brand:
|
|
○ Automation: As the name implies, these machines operate without the need for manual intervention. They can be programmed to cut cables of various lengths and diameters, significantly reducing labor costs and time.
○ Precision Cutting: Equipped with advanced sensors and cutting technologies, fully automatic cable cutting machines ensure that each cut is precise, reducing material wastage and improving overall quality.
○ Versatility: These machines can handle different types of cables, including multi-conductor wires, single-core cables, and specialty cables, making them suitable for diverse applications in automotive, telecommunications, and electronics sectors.
○ User-Friendly Interface: Most modern machines come with intuitive control panels or touchscreen interfaces, which allow operators to easily input specifications, monitor operations, and make adjustments on-the-fly.
|
Model |
YH-603Q |
|
Display Mode |
7-inch human-machine interface |
|
Wire Type |
Single-core wire, multi-core cable, shielded cable, electric wire, PVC pipe, etc. |
|
Processing Range |
0.25-30 square |
|
Cutting Length |
1mm-999999.99mm |
|
Cutting Tolerance |
Within 0.002*L (L=cutting length) |
|
Stripping Length |
Full stripping at front end: 1-200mm, half stripping at front end: 1-1500mm |
|
Maximum Allowable Diameter |
Φ18 |
|
Tool Material |
High-quality imported high - speed steel |
|
Productivity (PCS/hour) |
5500 PCS/hour (depending on the length and size of the wire) |
|
Drive Mode |
16-wheel drive (feeding stepping motor, tool post servo motor); Optional servo feeding |
|
Wire Feeding Mode |
Belt wire feeding, no indentation and no scratch on the cable. |
|
Lifting Operation Mode |
Digital adjustment of pressure wheel height |
|
Power Supply |
AC220V 50/60Hz; Optional 110V 50/60Hz |
|
Air Source |
0.5Mpa clean air source |
|
Dimension |
480*605*520(Length*Width*Height) mm |
|
Net Weight |
70kg |
