MC4 Connector: The "Power Bridge" for Solar Systems

Amidst the rapid growth of the global photovoltaic industry, a seemingly small yet crucial component quietly undertakes the core task of power transmission and connection between solar panels: the MC4 connector. As a key interface in photovoltaic (PV) systems, the MC4 connector not only simplifies the assembly process for solar panels but also ensures the safe and stable operation of the entire system with its reliable performance, becoming an indispensable "power bridge" in modern solar installations.

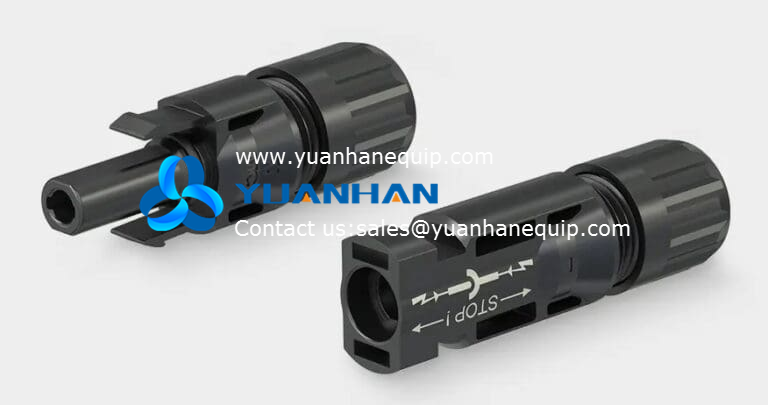

The MC4 connector's name has a clear history. The "MC" stands for its original manufacturer, Multi-Contact (now part of Stäubli Electrical Connectors), while the "4" refers to the diameter of its internal contact pins—4 mm. This design didn't emerge out of thin air; it is an upgrade of Multi-Contact's MC3 connector (with a 3 mm contact pin diameter), introduced in 1996. It was officially launched in 2004. Notably, the predecessor, the MC3, was discontinued in 2016, and the MC4, with its superior performance, has gradually become the mainstream choice for photovoltaic connections. From a structural perspective, the MC4 connector, despite its compact size, integrates multiple practical features. Its core components include a plastic insulating shell, metal contacts (typically secured by crimping, though welded in some cases), a rubber seal and seal retainer, and a clamping nut for securing the cable. The clamping nut not only secures the connected wires but also seals the connector and provides strain relief in the event of accidental wire pulls, preventing damage to the internal structure. Crucially, the MC4 connector features a positive locking mechanism. Two plastic locking tabs within the receptacle require gentle centering to insert into the front hole of the plug. Once fully mated, the tabs slide into grooves on the side of the plug and pop out, securing the connection. This design, required by the 2008 National Electrical Code (NEC), has earned widespread market acceptance.

In practical applications, compatibility and adaptability are key considerations for the MC4 connector. First, cable compatibility: The cross-sectional area of ​​cables commonly used in solar systems ranges from 2.5mm² to 10mm², with 4mm² (corresponding to 12AWG) and 6mm² (corresponding to 10AWG) being the most common. These cables are designed for outdoor environments and feature a double insulation structure (insulation layer + black jacket) to protect against UV radiation, extreme temperature fluctuations (from freezing to scorching heat), and inclement weather like rain, snow, and hail. Secondly, the connection method: Crimp is the most common connection method for MC4 connectors, offering ease of use and reliable connection. Soldering can also be used in some specialized scenarios, but requires strict process control to ensure proper contact performance.

Safety is always a core principle in the use of MC4 connectors. Because direct current (DC) arcs continuously when disconnected, while alternating current (AC) arcs extinguish themselves, plugging and unplugging MC4 connectors while under load is strictly prohibited. Even at low voltages, the continuous arcing can damage the contact surface, increasing contact resistance and ultimately causing localized overheating and even safety hazards. Furthermore, the non-interchangeability of MC4 connectors requires special attention: PV connectors from different manufacturers and models, even if similar in appearance, may have subtle differences in internal dimensions. Randomly intermixing them can lead to loose connections or poor contact, posing a safety hazard. This is clearly stipulated in multiple standards: the US UL 6703 photovoltaic connector standard and the International Electrotechnical Commission (IEC) 62548 photovoltaic system design standard both require that PV connectors must be of the same brand and model to avoid the risks of cross-matching.

As photovoltaic technology advances, the performance of MC4 connectors is also constantly evolving. While earlier products were rated at 600V, the new generation MC4 connector boasts a voltage rating of 1500V. This increase allows for more panels to be connected in series within a solar system, reducing cable losses and improving overall system efficiency. Current-carrying capacity has also been optimized. For example, the MC4 connector, when used with 6AWG cable, is rated up to 95A. The MC4-Evo 2 model, with dual UL and IEC certification, boasts a current rating of up to 70A when using 10mm² cable, meeting the needs of PV systems of varying sizes.

In its applications, the MC4 connector's role has far surpassed its basic function of connecting panels together. Besides manually connecting adjacent solar panels into "panel strings" (connection is tool-free, while disconnection requires specialized tools to prevent accidental disconnection due to cable strain), it is also widely used to connect panels to charge controllers and portable power stations, encompassing diverse applications such as residential distributed photovoltaic systems, large-scale commercial and industrial photovoltaic power plants, and building-integrated photovoltaic (BIPV). For example, TE Connectivity's SOLARLOK connector is a representative MC4 connector, enabling fast and reliable connections between PV modules with varying insulation diameters and DC/AC inverters. Amphenol Industrial Operations' Amphe-PV H4 Plus connector, also MC4, boasts robust certifications and enhanced features, making it an ideal choice for residential and commercial PV installations.

Regarding the supply chain, it's important to note that while the "MC4" connector specification was initially manufactured exclusively by Stäubli Electrical Connections, as the technology became more widespread, numerous manufacturers, including TE Connectivity, Amphenol, Phoenix Contact, and Weidmüller, have released compatible products that adhere to the MC4 standard. While these compatible products are not original MC4 connectors, they all adhere to MC4 design specifications, meeting the purchasing needs of various users.

Judging from the development trends of the photovoltaic industry, the MC4 connector's position will remain strong in the long term. With its core advantages of convenient connection, reliable locking, and safety and durability, it solves the "last mile" problem of power transmission in solar systems. Whether it's a small PV array on a home roof or a vast utility-scale PV power plant, it's essential. For PV installers and system maintainers, mastering the correct selection, installation, and use of the MC4 connector is not only fundamental to ensuring efficient system operation but also crucial to safeguarding PV system safety.
